苍穹外卖开发日志Day09——地址簿、用户下单及订单支付

• 地址簿用、户下单及订单支付
  • 地址簿
  • 用户下单
  • 订单支付

---

2025.07.26

一、地址簿

1.1 地址簿——功能开发

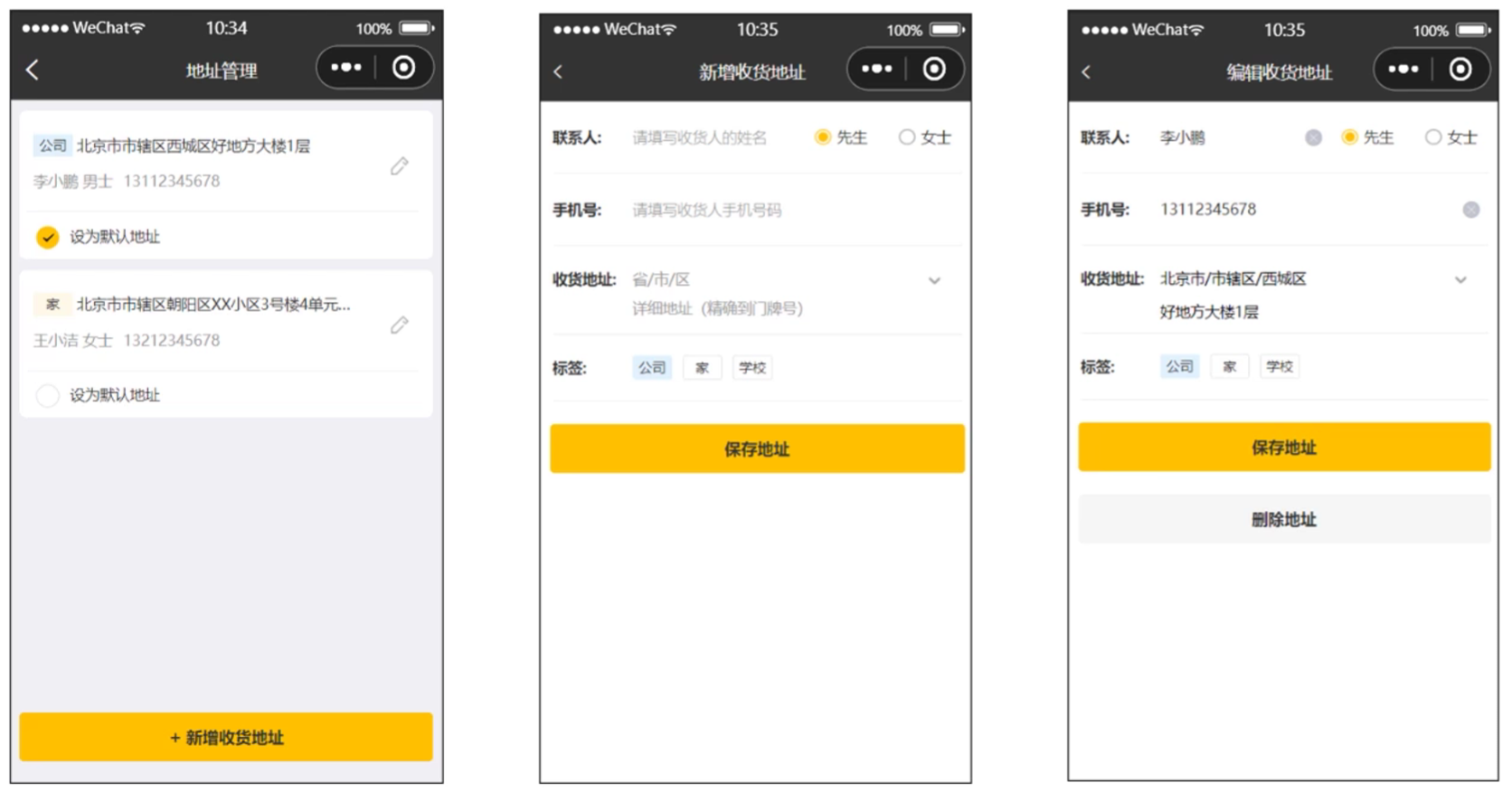

• 产品原型

• 业务功能
  • 查询地址列表
  • 新增地址
  • 修改地址
  • 删除地址
  • 设置默认地址
  • 查询默认地址
• 接口设计

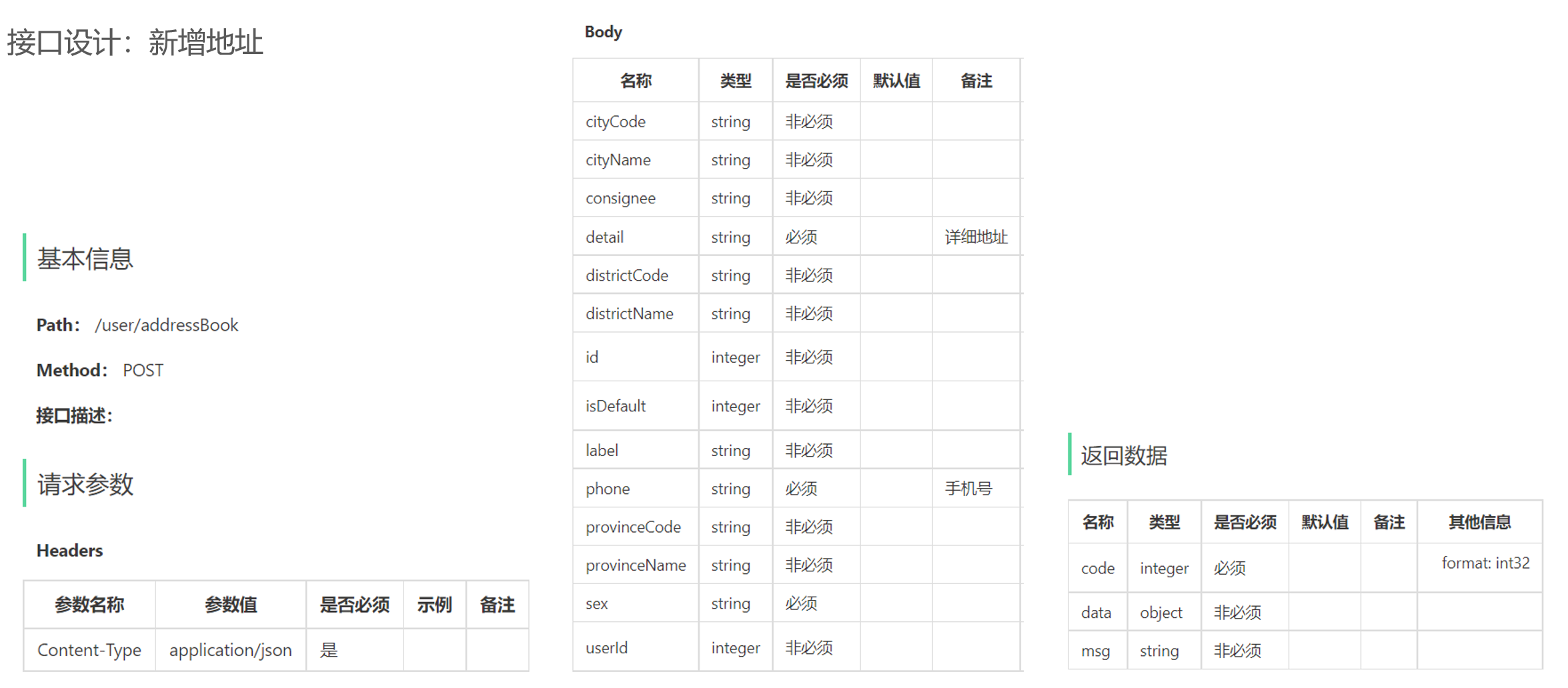

  • 新增地址

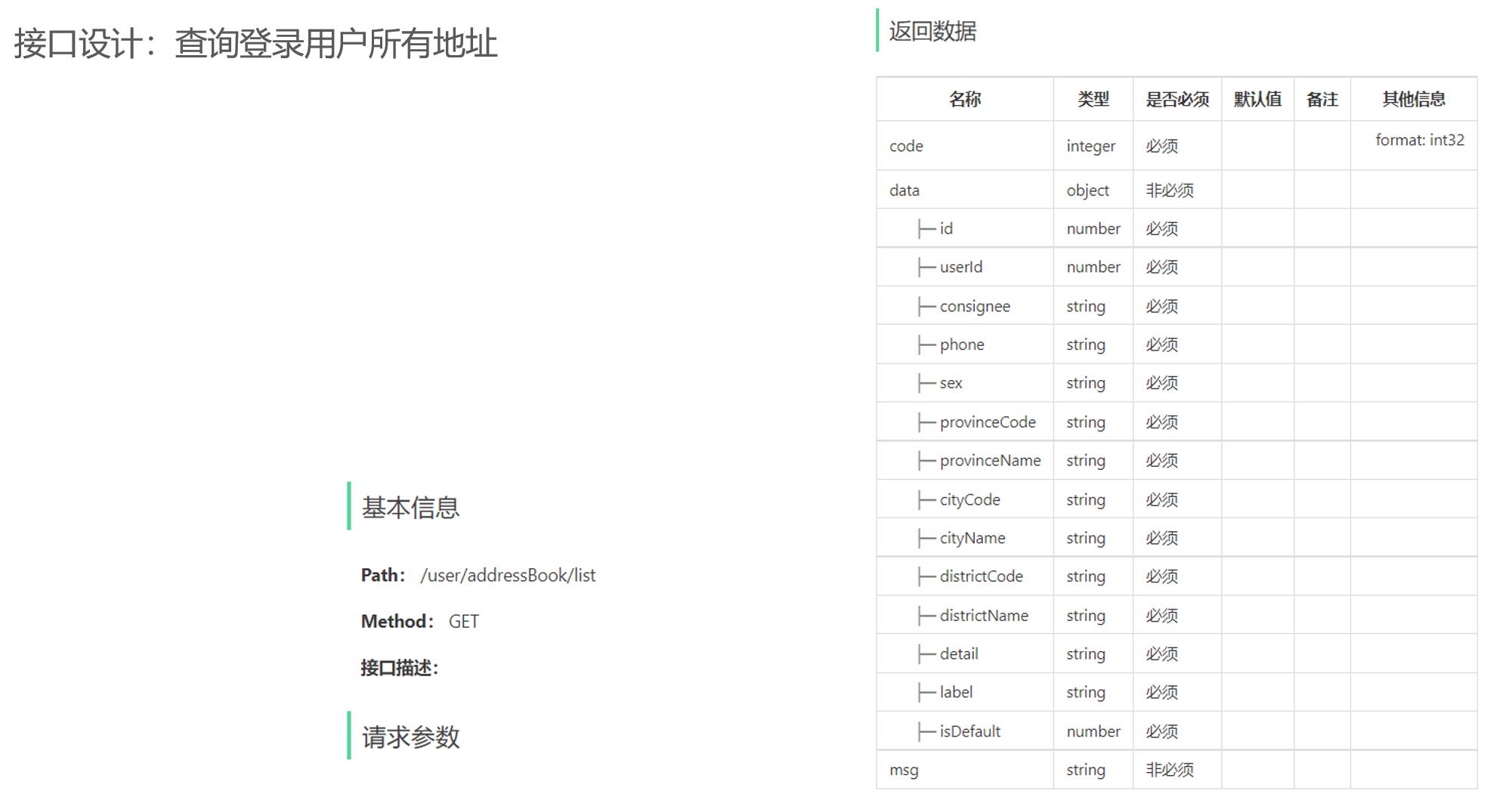

  • 查询当前登录用户的所有地址信息

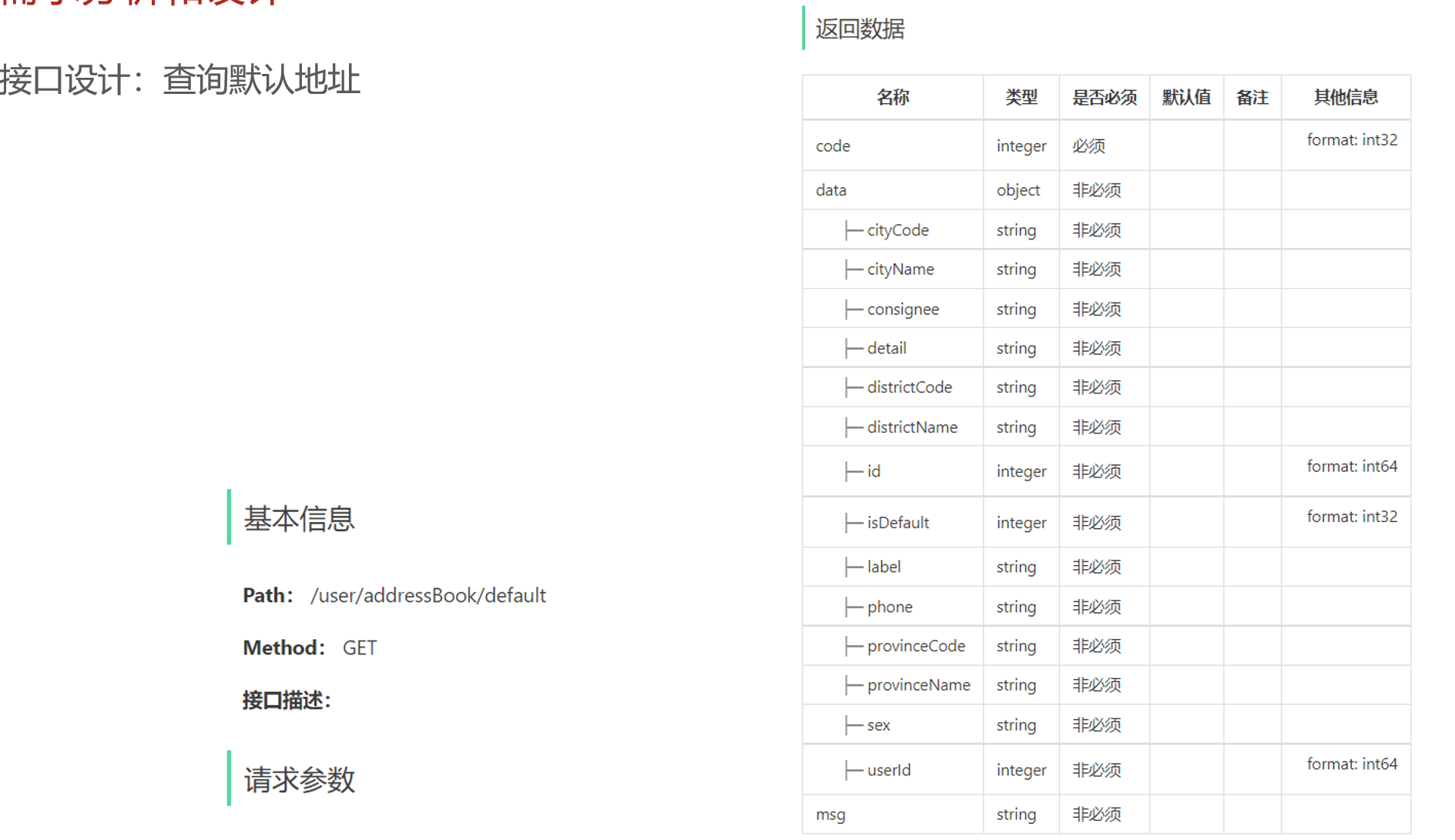

  • 查询默认信息

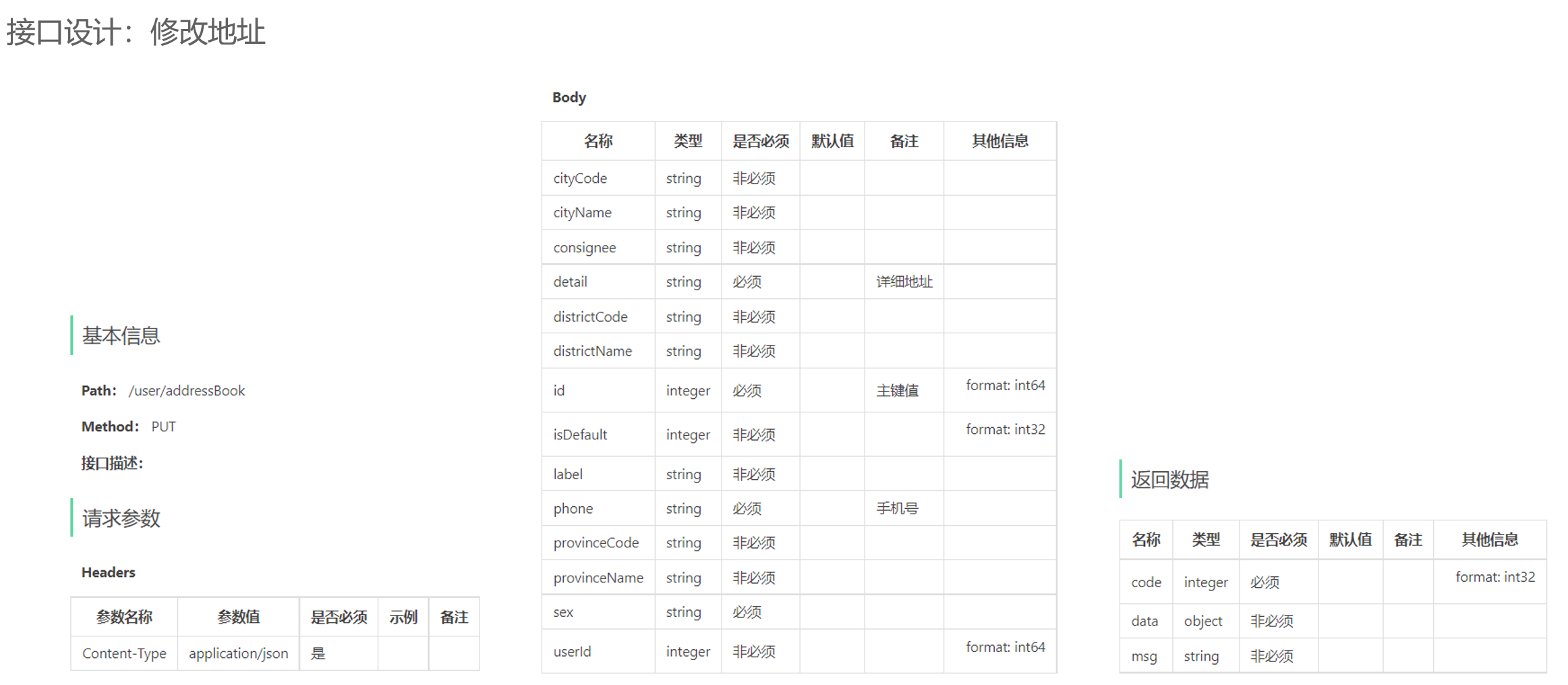

  • 根据id修改地址

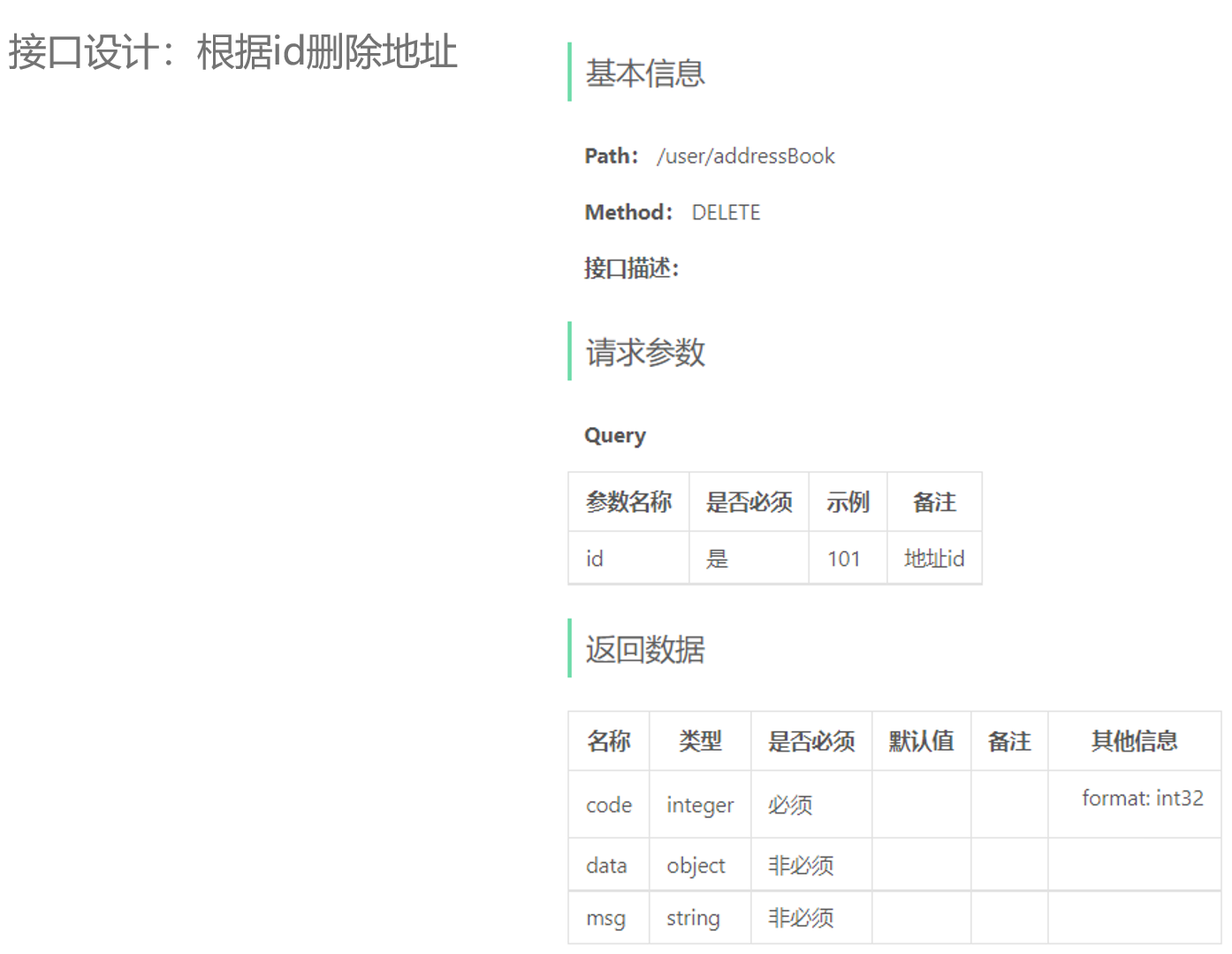

  • 根据id删除地址

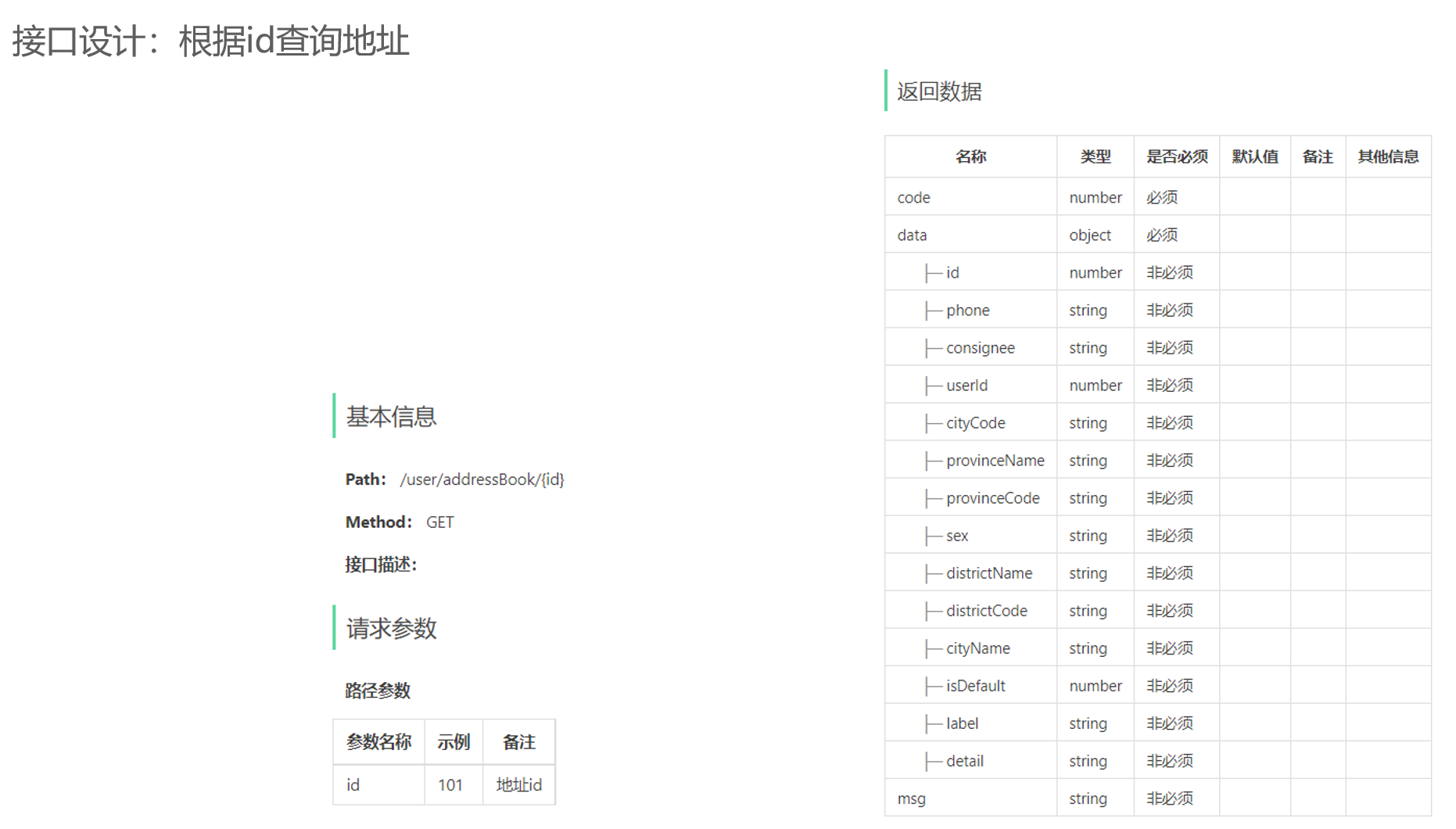

  • 根据id查询地址

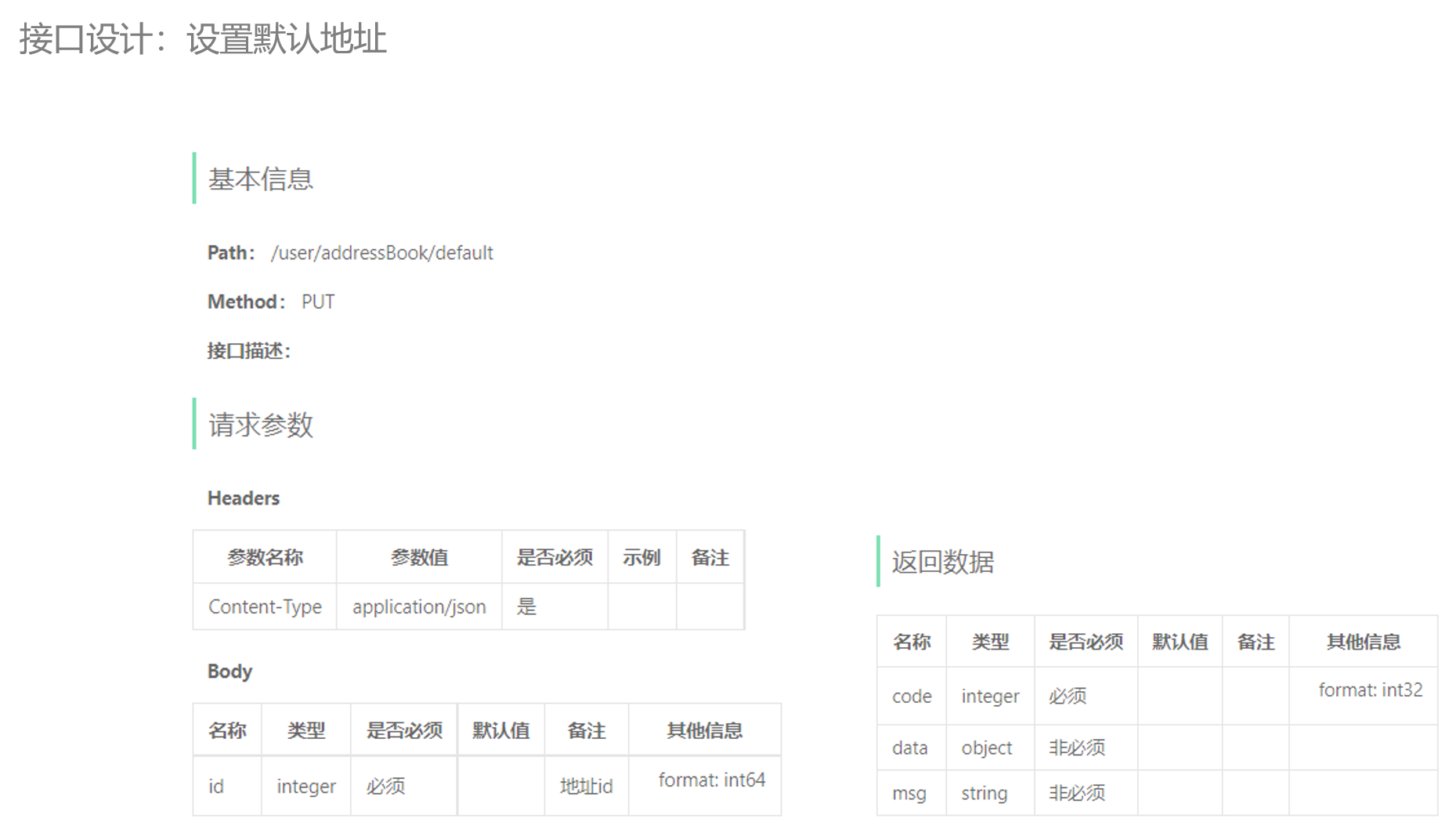

  • 设置默认地址

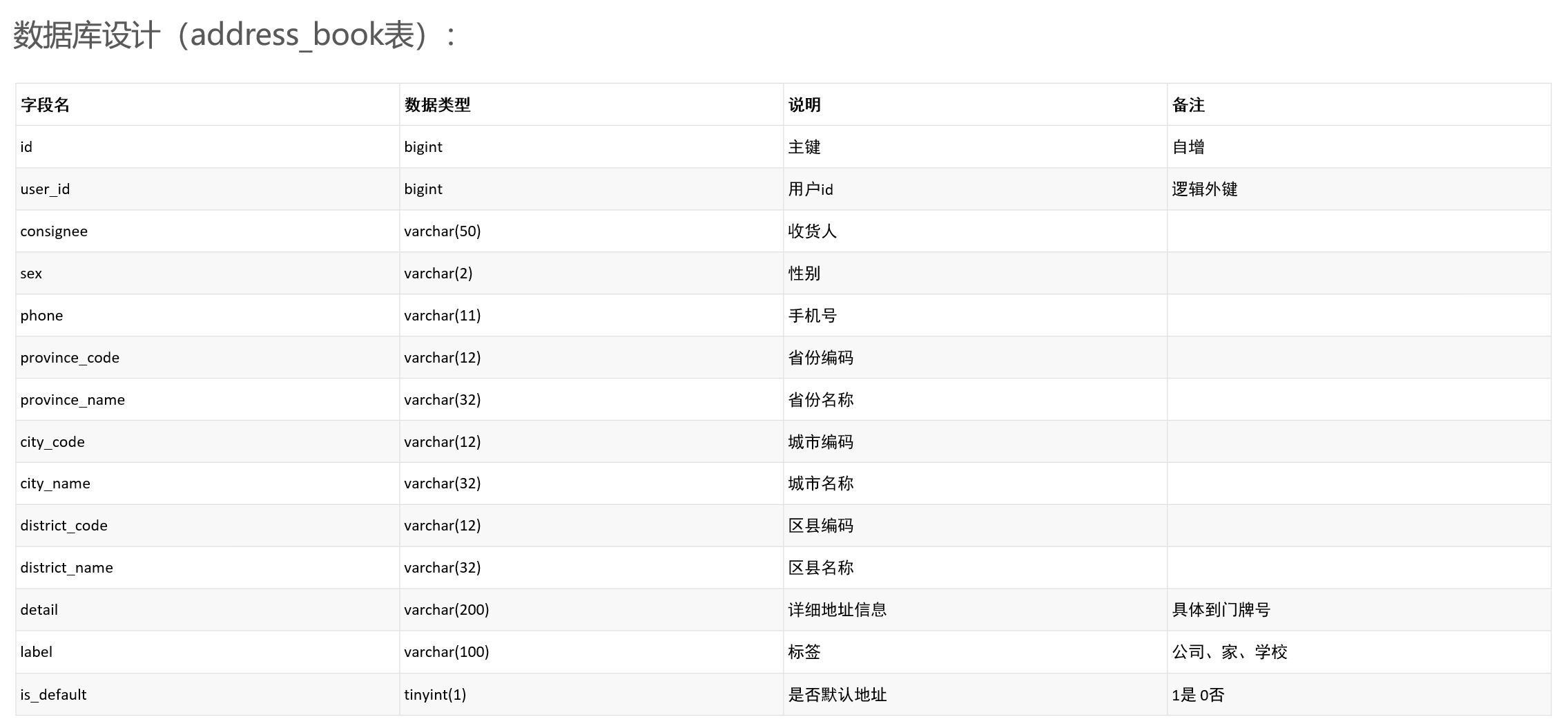

• 数据库设计


1.2 地址簿——代码实现

1.2.1 AddressBookController

@RestController
@RequestMapping("/user/addressBook")
@Api(tags = "C端地址簿接口")
public class AddressBookController {

    @Autowired
    private AddressBookService addressBookService;

    /**
     * 查询当前登录用户的所有地址信息
     *
     * @return
     */
    @GetMapping("/list")
    @ApiOperation("查询当前登录用户的所有地址信息")
    public Result<List<AddressBook>> list() {
        AddressBook addressBook = new AddressBook();
        addressBook.setUserId(BaseContext.getCurrentId());
        List<AddressBook> list = addressBookService.list(addressBook);
        return Result.success(list);
    }

    /**
     * 新增地址
     *
     * @param addressBook
     * @return
     */
    @PostMapping
    @ApiOperation("新增地址")
    public Result save(@RequestBody AddressBook addressBook) {
        addressBookService.save(addressBook);
        return Result.success();
    }

    @GetMapping("/{id}")
    @ApiOperation("根据id查询地址")
    public Result<AddressBook> getById(@PathVariable Long id) {
        AddressBook addressBook = addressBookService.getById(id);
        return Result.success(addressBook);
    }

    /**
     * 根据id修改地址
     *
     * @param addressBook
     * @return
     */
    @PutMapping
    @ApiOperation("根据id修改地址")
    public Result update(@RequestBody AddressBook addressBook) {
        addressBookService.update(addressBook);
        return Result.success();
    }

    /**
     * 设置默认地址
     *
     * @param addressBook
     * @return
     */
    @PutMapping("/default")
    @ApiOperation("设置默认地址")
    public Result setDefault(@RequestBody AddressBook addressBook) {
        addressBookService.setDefault(addressBook);
        return Result.success();
    }

    /**
     * 根据id删除地址
     *
     * @param id
     * @return
     */
    @DeleteMapping
    @ApiOperation("根据id删除地址")
    public Result deleteById(Long id) {
        addressBookService.deleteById(id);
        return Result.success();
    }

    /**
     * 查询默认地址
     */
    @GetMapping("default")
    @ApiOperation("查询默认地址")
    public Result<AddressBook> getDefault() {
        //SQL:select * from address_book where user_id = ? and is_default = 1
        AddressBook addressBook = new AddressBook();
        addressBook.setIsDefault(1);
        addressBook.setUserId(BaseContext.getCurrentId());
        List<AddressBook> list = addressBookService.list(addressBook);

        if (list != null && list.size() == 1) {
            return Result.success(list.get(0));
        }

        return Result.error("没有查询到默认地址");
    }

}

1.2.2 AddressBookService

public interface AddressBookService {

    List<AddressBook> list(AddressBook addressBook);

    void save(AddressBook addressBook);

    AddressBook getById(Long id);

    void update(AddressBook addressBook);

    void setDefault(AddressBook addressBook);

    void deleteById(Long id);

}

1.2.3 AddressBookServiceImpl

@Service
@Slf4j
public class AddressBookServiceImpl implements AddressBookService {
    @Autowired
    private AddressBookMapper addressBookMapper;

    /**
     * 条件查询
     *
     * @param addressBook
     * @return
     */
    public List<AddressBook> list(AddressBook addressBook) {
        return addressBookMapper.list(addressBook);
    }

    /**
     * 新增地址
     *
     * @param addressBook
     */
    public void save(AddressBook addressBook) {
        addressBook.setUserId(BaseContext.getCurrentId());
        addressBook.setIsDefault(0);
        addressBookMapper.insert(addressBook);
    }

    /**
     * 根据id查询
     *
     * @param id
     * @return
     */
    public AddressBook getById(Long id) {
        AddressBook addressBook = addressBookMapper.getById(id);
        return addressBook;
    }

    /**
     * 根据id修改地址
     *
     * @param addressBook
     */
    public void update(AddressBook addressBook) {
        addressBookMapper.update(addressBook);
    }

    /**
     * 设置默认地址
     *
     * @param addressBook
     */
    @Transactional
    public void setDefault(AddressBook addressBook) {
        //1、将当前用户的所有地址修改为非默认地址 update address_book set is_default = ? where user_id = ?
        addressBook.setIsDefault(0);
        addressBook.setUserId(BaseContext.getCurrentId());
        addressBookMapper.updateIsDefaultByUserId(addressBook);

        //2、将当前地址改为默认地址 update address_book set is_default = ? where id = ?
        addressBook.setIsDefault(1);
        addressBookMapper.update(addressBook);
    }

    /**
     * 根据id删除地址
     *
     * @param id
     */
    public void deleteById(Long id) {
        addressBookMapper.deleteById(id);
    }

}

1.2.4 AddressBookMapper

@Mapper
public interface AddressBookMapper {

    /**
     * 条件查询
     * @param addressBook
     * @return
     */
    List<AddressBook> list(AddressBook addressBook);

    /**
     * 新增
     * @param addressBook
     */
    @Insert("insert into address_book" +
            "        (user_id, consignee, phone, sex, province_code, province_name, city_code, city_name, district_code," +
            "         district_name, detail, label, is_default)" +
            "        values (#{userId}, #{consignee}, #{phone}, #{sex}, #{provinceCode}, #{provinceName}, #{cityCode}, #{cityName}," +
            "                #{districtCode}, #{districtName}, #{detail}, #{label}, #{isDefault})")
    void insert(AddressBook addressBook);

    /**
     * 根据id查询
     * @param id
     * @return
     */
    @Select("select * from address_book where id = #{id}")
    AddressBook getById(Long id);

    /**
     * 根据id修改
     * @param addressBook
     */
    void update(AddressBook addressBook);

    /**
     * 根据 用户id修改 是否默认地址
     * @param addressBook
     */
    @Update("update address_book set is_default = #{isDefault} where user_id = #{userId}")
    void updateIsDefaultByUserId(AddressBook addressBook);

    /**
     * 根据id删除地址
     * @param id
     */
    @Delete("delete from address_book where id = #{id}")
    void deleteById(Long id);

}

1.2.5 AddressBookMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.sky.mapper.AddressBookMapper">

    <select id="list" parameterType="AddressBook" resultType="AddressBook">
        select * from address_book
        <where>
            <if test="userId != null">
                and user_id = #{userId}
            </if>
            <if test="phone != null">
                and phone = #{phone}
            </if>
            <if test="isDefault != null">
                and is_default = #{isDefault}
            </if>
        </where>
    </select>

    <update id="update" parameterType="addressBook">
        update address_book
        <set>
            <if test="consignee != null">
                consignee = #{consignee},
            </if>
            <if test="sex != null">
                sex = #{sex},
            </if>
            <if test="phone != null">
                phone = #{phone},
            </if>
            <if test="detail != null">
                detail = #{detail},
            </if>
            <if test="label != null">
                label = #{label},
            </if>
            <if test="isDefault != null">
                is_default = #{isDefault},
            </if>
        </set>
        where id = #{id}
    </update>

</mapper>

1.3 地址簿——功能测试

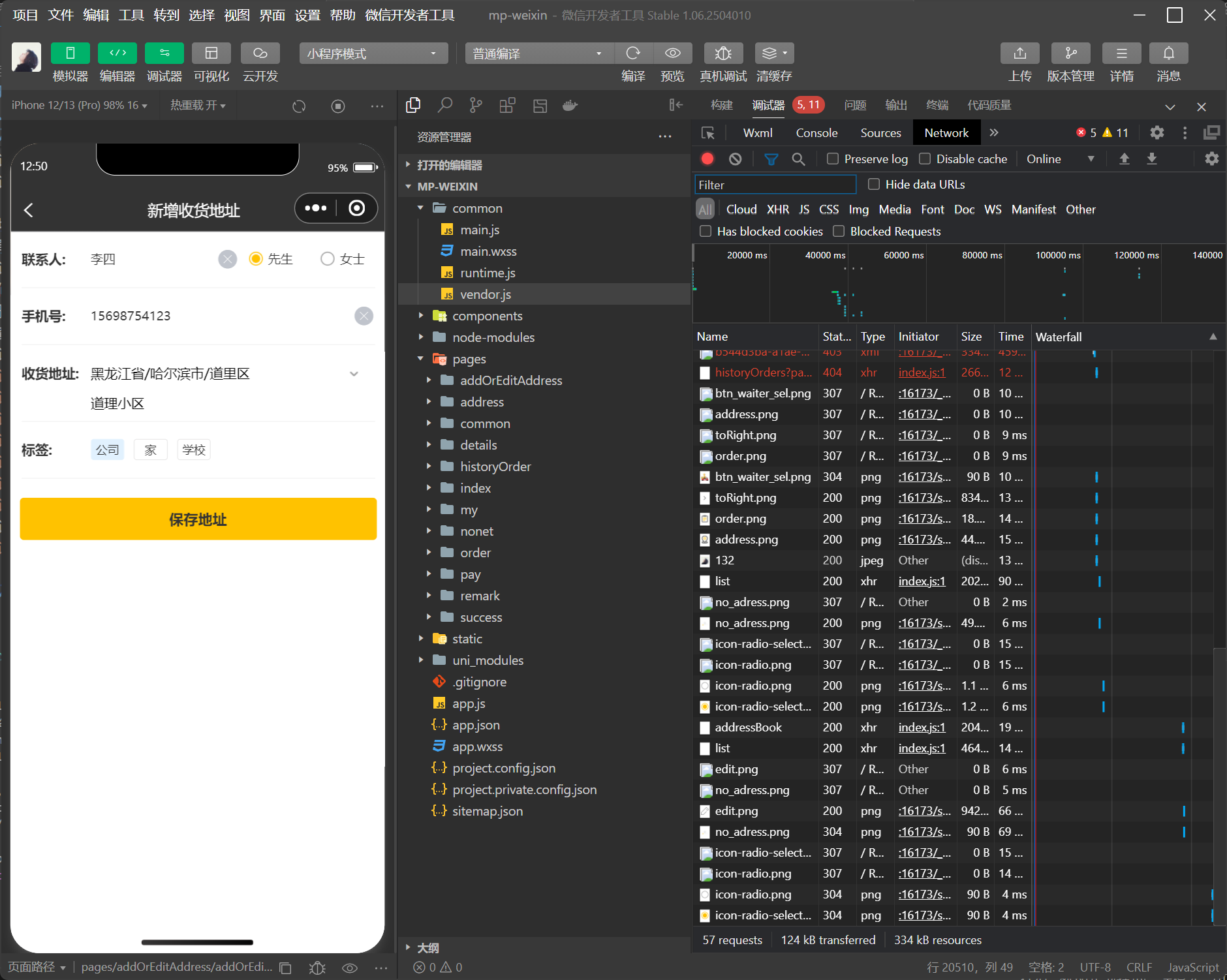

• 新增地址

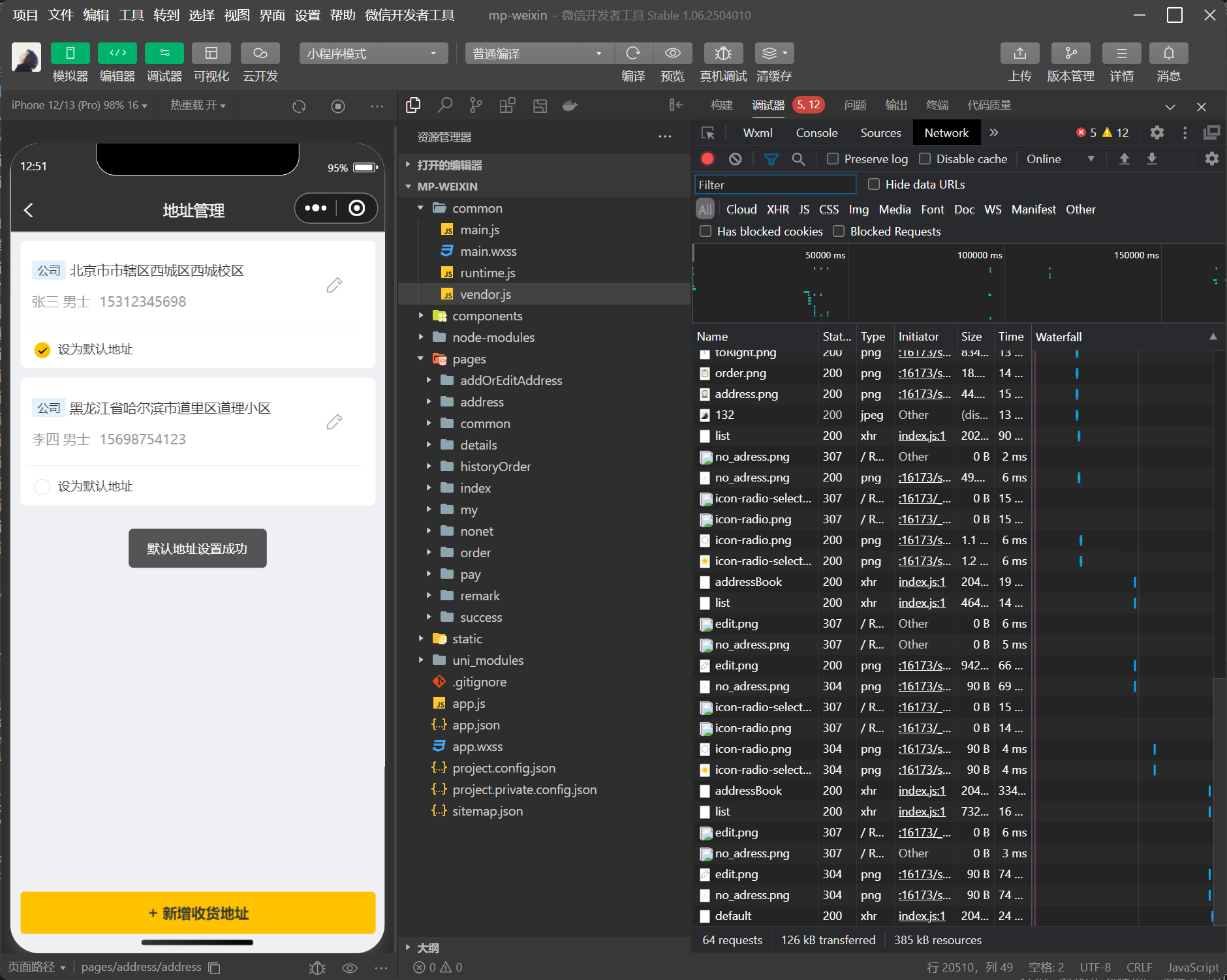

• 设置默认地址

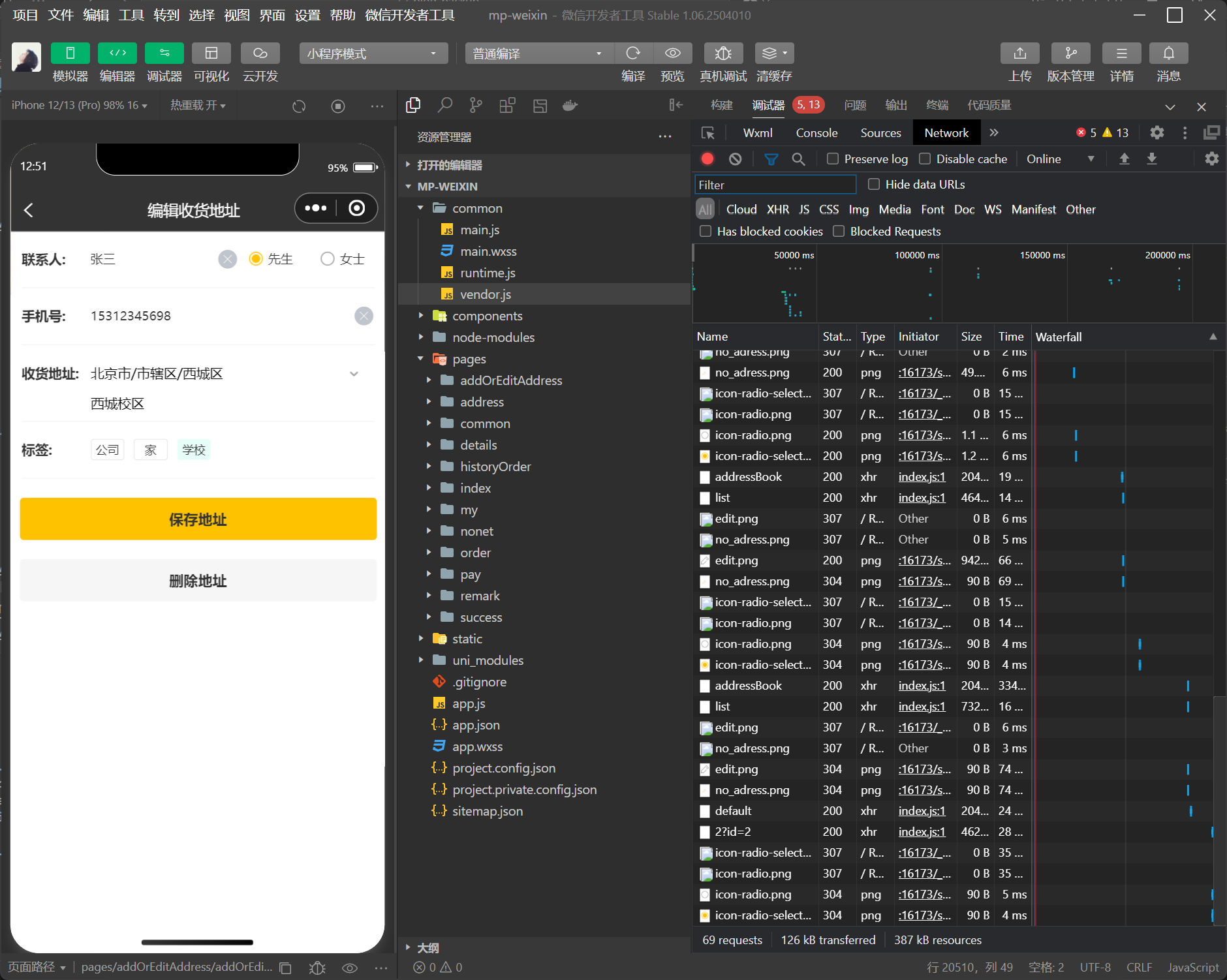

• 修改地址


二、用户下单

2.1 用户下单——功能开发

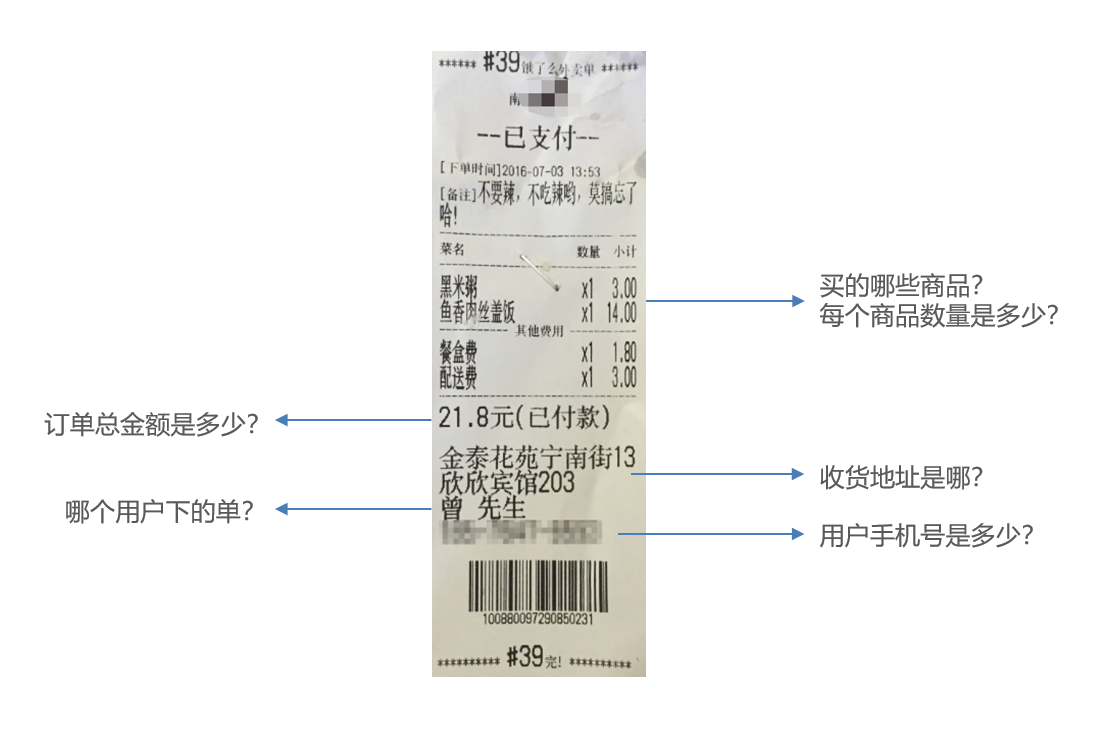

• 用户下单业务说明：
  • 在电商系统中，用户是通过下单的方式通知商家，用户已经购买了商品，需要商家进行备货和发货。
  • 用户下单后会产生订单相关数据，订单数据需要能够体现如下信息：

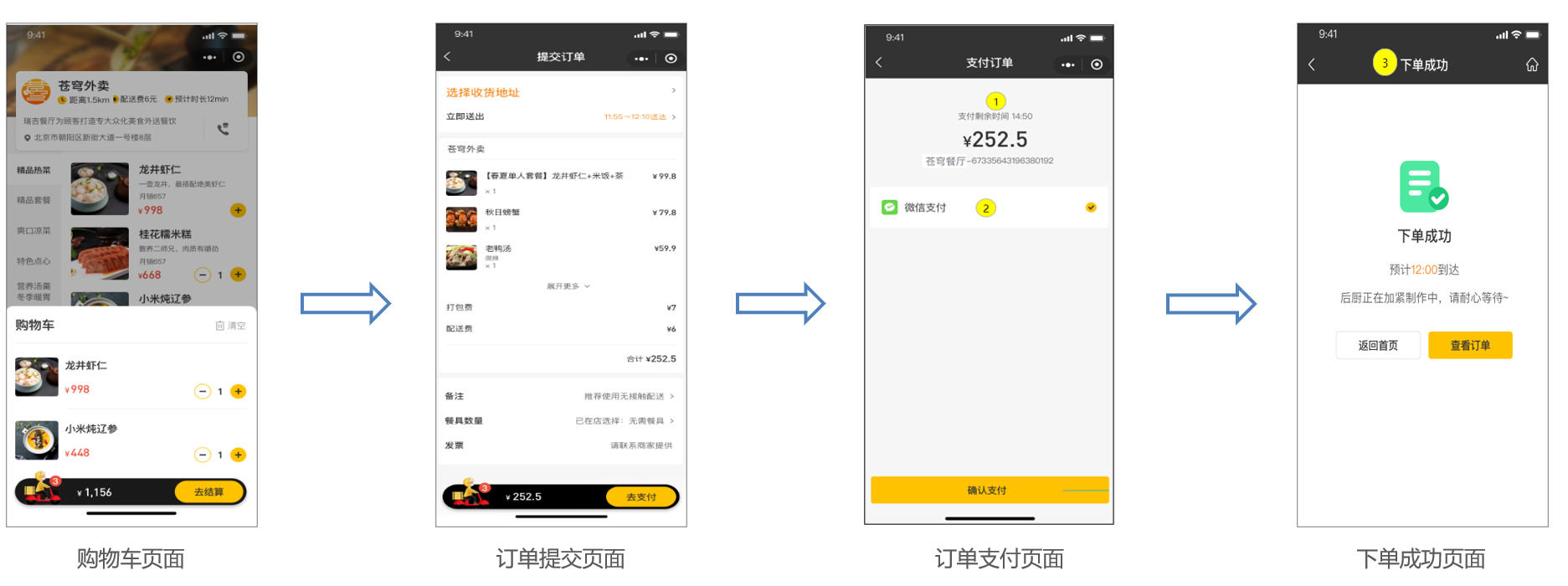

• 用户点餐业务流程

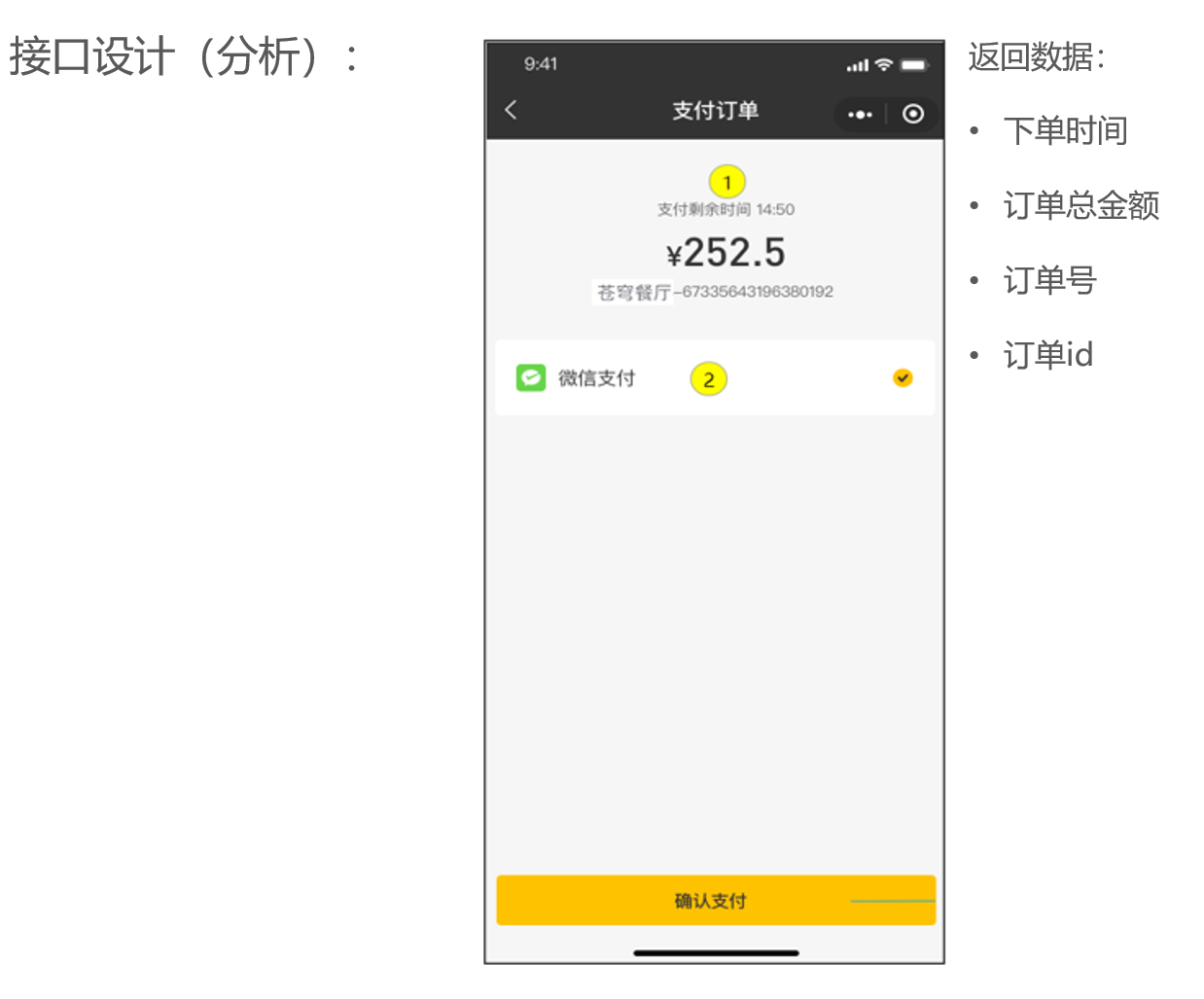

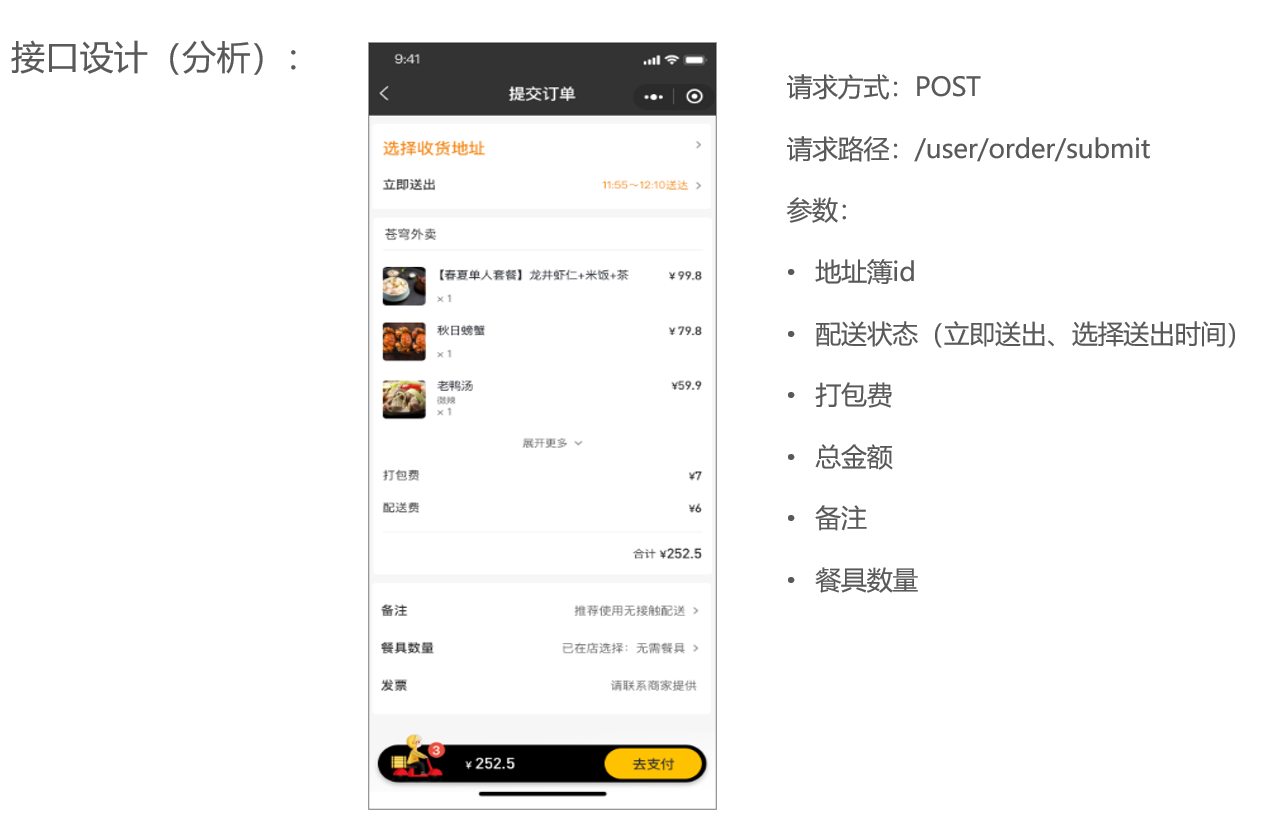

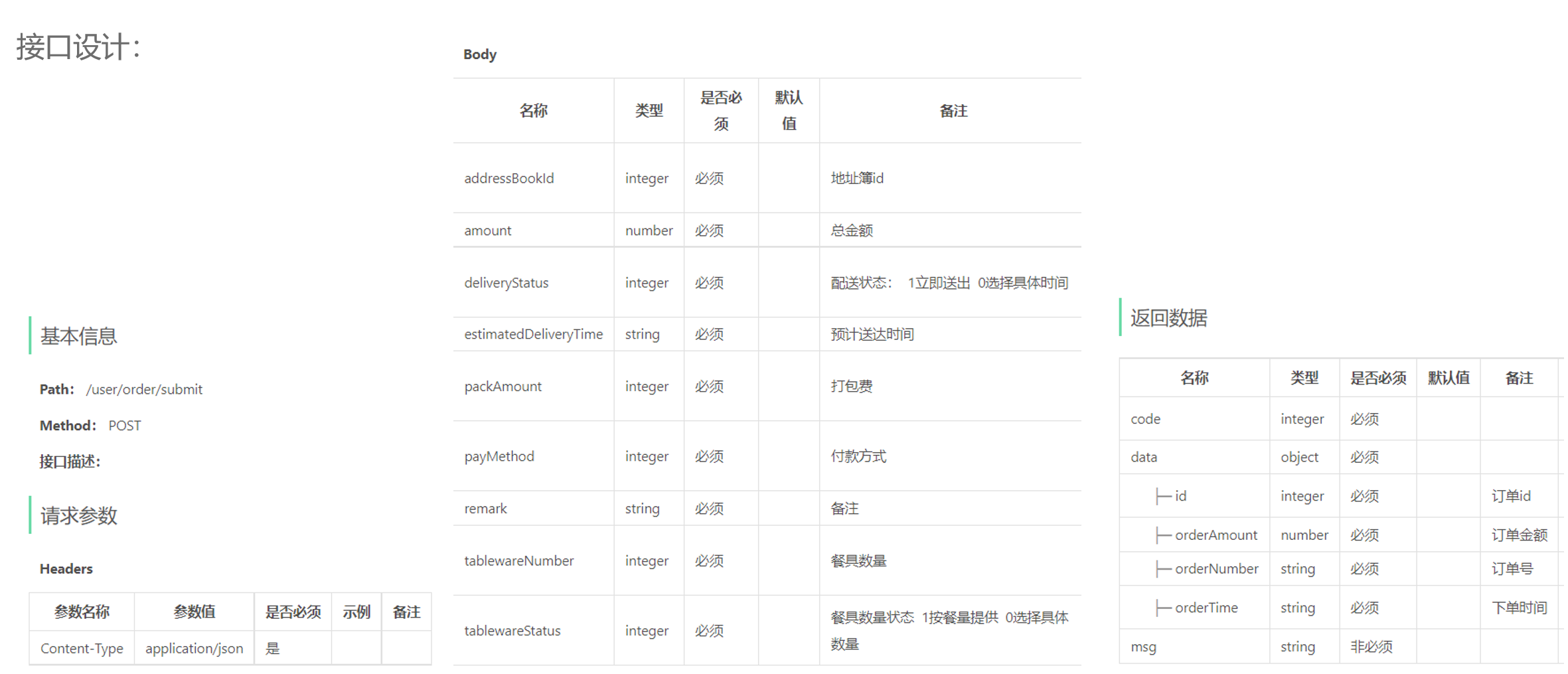

• 接口设计



• 数据库设计

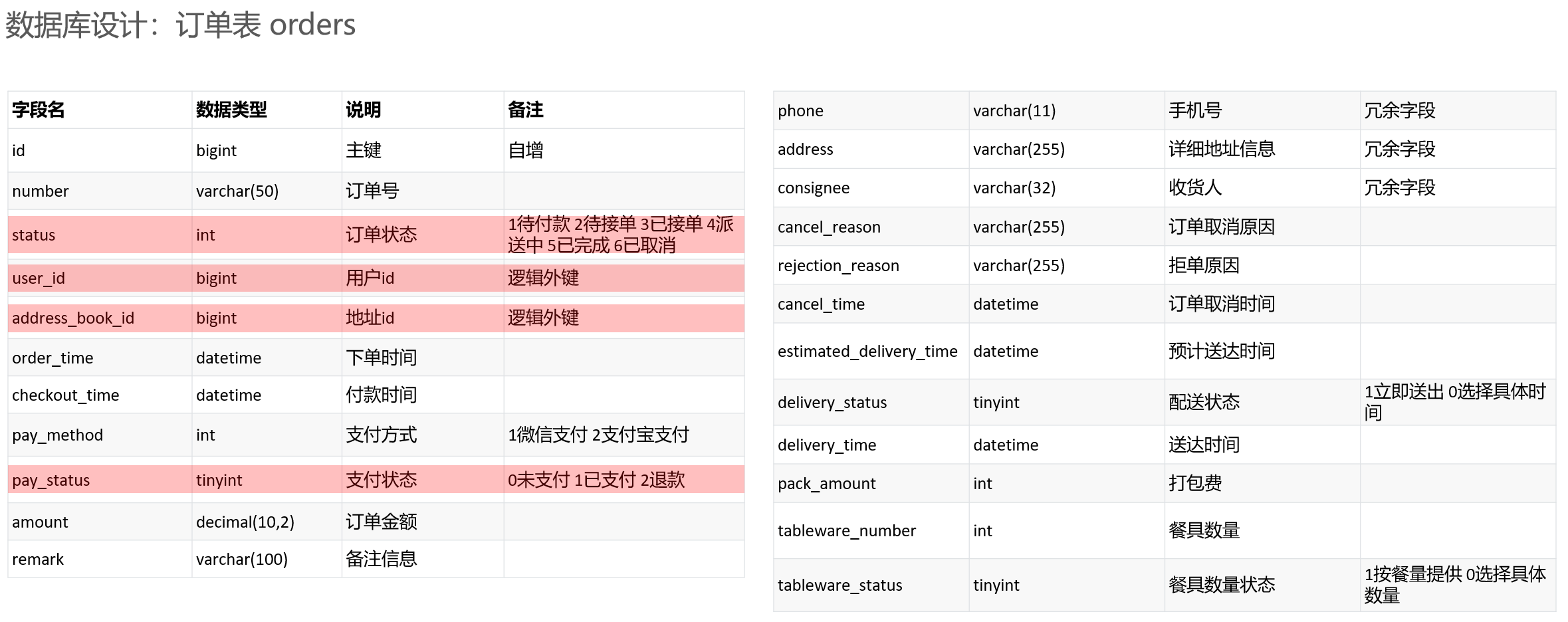

  • 订单表orders
    • 谁的订单
    • 送到哪里
    • 打哪个电话联系
    • 多少钱
    • 什么时间下的单
    • 什么时间支付的
    • 订单的状态
    • 订单号是多少

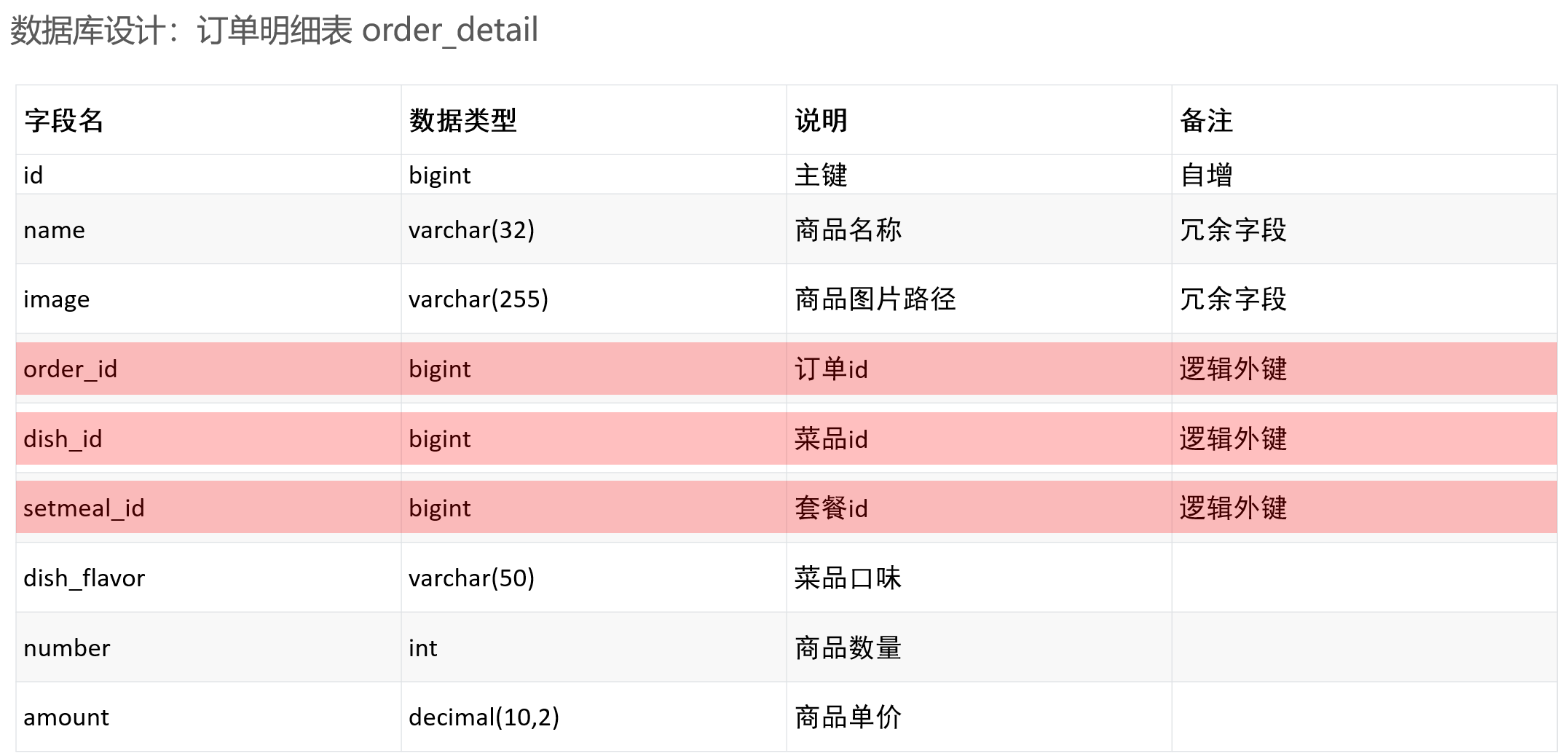

  • 订单明细表order_detail
    • 当前明细属于哪个订单
    • 具体点的是什么商品
    • 这个商品点了几份


2.2 用户下单——代码实现

2.2.1 OrderController

@RestController("userOrderController")
@RequestMapping("/user/order")
@Api(tags = "用户端订单相关接口")
@Slf4j
public class OrderController {

    @Autowired
    private OrderService orderService;


    /**
     * 用户下单
     * @return
     */
    @PostMapping("/submit")
    @ApiOperation("用户下单")
    public Result<OrderSubmitVO> submit(@RequestBody OrdersSubmitDTO ordersSubmitDTO) {
        log.info("用户下单，参数为：{}", ordersSubmitDTO);
        OrderSubmitVO orderSubmitVO = orderService.submitOrder(ordersSubmitDTO);
        return Result.success(orderSubmitVO);
    }
}

2.2.2 OrderService

public interface OrderService {

    /**
     * 用户下单
     * @param ordersSubmitDTO
     * @return
     */
    OrderSubmitVO submitOrder(OrdersSubmitDTO ordersSubmitDTO);
}

2.2.3 OrderServiceImpl

@Service
public class OrderServiceImpl implements OrderService {


    @Autowired
    private OrderMapper orderMapper;
    @Autowired
    private OrderDetailMapper orderDetailMapper;
    @Autowired
    private AddressBookMapper addressBookMapper;
    @Autowired
    private ShoppingCartMapper shoppingCartMapper;

    /**
     * 用户下单
     * @param ordersSubmitDTO
     * @return
     */
    @Override
    @Transactional
    public OrderSubmitVO submitOrder(OrdersSubmitDTO ordersSubmitDTO) {

        // 处理各种业务异常（地址簿为空、购物车数据为空）
        // 判断地址簿是否为空
        AddressBook addressBook = addressBookMapper.getById(ordersSubmitDTO.getAddressBookId());
        if (addressBook == null) {
            throw new AddressBookBusinessException(MessageConstant.ADDRESS_BOOK_IS_NULL);
        }
        // 判断购物车是否为空
        Long UserId = BaseContext.getCurrentId();
        ShoppingCart shoppingCart = new ShoppingCart();
        shoppingCart.setUserId(UserId);
        List<ShoppingCart> shoppingCartList = shoppingCartMapper.list(shoppingCart);
        if (shoppingCartList == null || shoppingCartList.size() == 0) {
            throw new ShoppingCartBusinessException(MessageConstant.SHOPPING_CART_IS_NULL);
        }

        // 向订单表中插入1条数据
        Orders orders = new Orders();
        BeanUtils.copyProperties(ordersSubmitDTO, orders);
        orders.setOrderTime(LocalDateTime.now());
        orders.setPayStatus(Orders.UN_PAID);  // 未支付
        orders.setStatus(Orders.PENDING_PAYMENT);  // 待付款
        orders.setNumber(String.valueOf(System.currentTimeMillis()));
        orders.setPhone(addressBook.getPhone());
        orders.setConsignee(addressBook.getConsignee());
        orders.setUserId(UserId);

        orderMapper.insert(orders);

        List<OrderDetail> orderDetailList = new ArrayList<>();

        // 向订单明细表插入n条数据
        for (ShoppingCart cart : shoppingCartList) {
            OrderDetail orderDetail = new OrderDetail();
            BeanUtils.copyProperties(cart, orderDetail);
            orderDetail.setOrderId(orders.getId());  // 设置当前订单明细相关的订单id
            orderDetailList.add(orderDetail);
        }

        orderDetailMapper.insertBatch(orderDetailList);

        // 清空当前用户购物车数据
        shoppingCartMapper.deleteByUserId(UserId);

        // 封装VO返回结果
        OrderSubmitVO orderSubmitVO = OrderSubmitVO.builder()
                .id(orders.getId())
                .orderTime(orders.getOrderTime())
                .orderNumber(orders.getNumber())
                .orderAmount(orders.getAmount())
                .build();

        return orderSubmitVO;
    }
}

2.2.4 OrderMapper

@Mapper
public interface OrderMapper {

    /**
     * 插入订单数据
     * @param orders
     */
    void insert(Orders orders);

}

2.2.5 OrderDetailMapper

@Mapper
public interface OrderDetailMapper {

    /**
     * 批量插入订单明细数据
     * @param orderDetailList
     */
    void insertBatch(List<OrderDetail> orderDetailList);
}

2.2.6 OrderMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.sky.mapper.OrderMapper">

    <insert id="insert" useGeneratedKeys="true" keyProperty="id">
        insert into orders (number, status, user_id, address_book_id,
                            order_time, checkout_time, pay_method, pay_status,
                            amount, remark, phone, address, consignee,
                            estimated_delivery_time, delivery_status, pack_amount,
                            tableware_number, tableware_status)
        VALUES (#{number}, #{status}, #{userId}, #{addressBookId}, #{orderTime},
                #{checkoutTime}, #{payMethod}, #{payStatus}, #{amount}, #{remark},
                #{phone}, #{address}, #{consignee}, #{estimatedDeliveryTime},
                #{deliveryStatus}, #{packAmount}, #{tablewareNumber}, #{tablewareStatus})
    </insert>
</mapper>

2.2.7 OrderDetailMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.sky.mapper.OrderDetailMapper">


    <insert id="insertBatch">
        insert into order_detail (name, image, order_id, dish_id,
                                  setmeal_id, dish_flavor, number, amount)
        VALUES
        <foreach collection="orderDetailList" item="od" separator=",">
            (#{od.name}, #{od.image}, #{od.orderId}, #{od.dishId},
             #{od.setmealId}, #{od.dishFlavor}, #{od.number}, #{od.amount})
        </foreach>
    </insert>
</mapper>

2.3 用户下单——功能测试

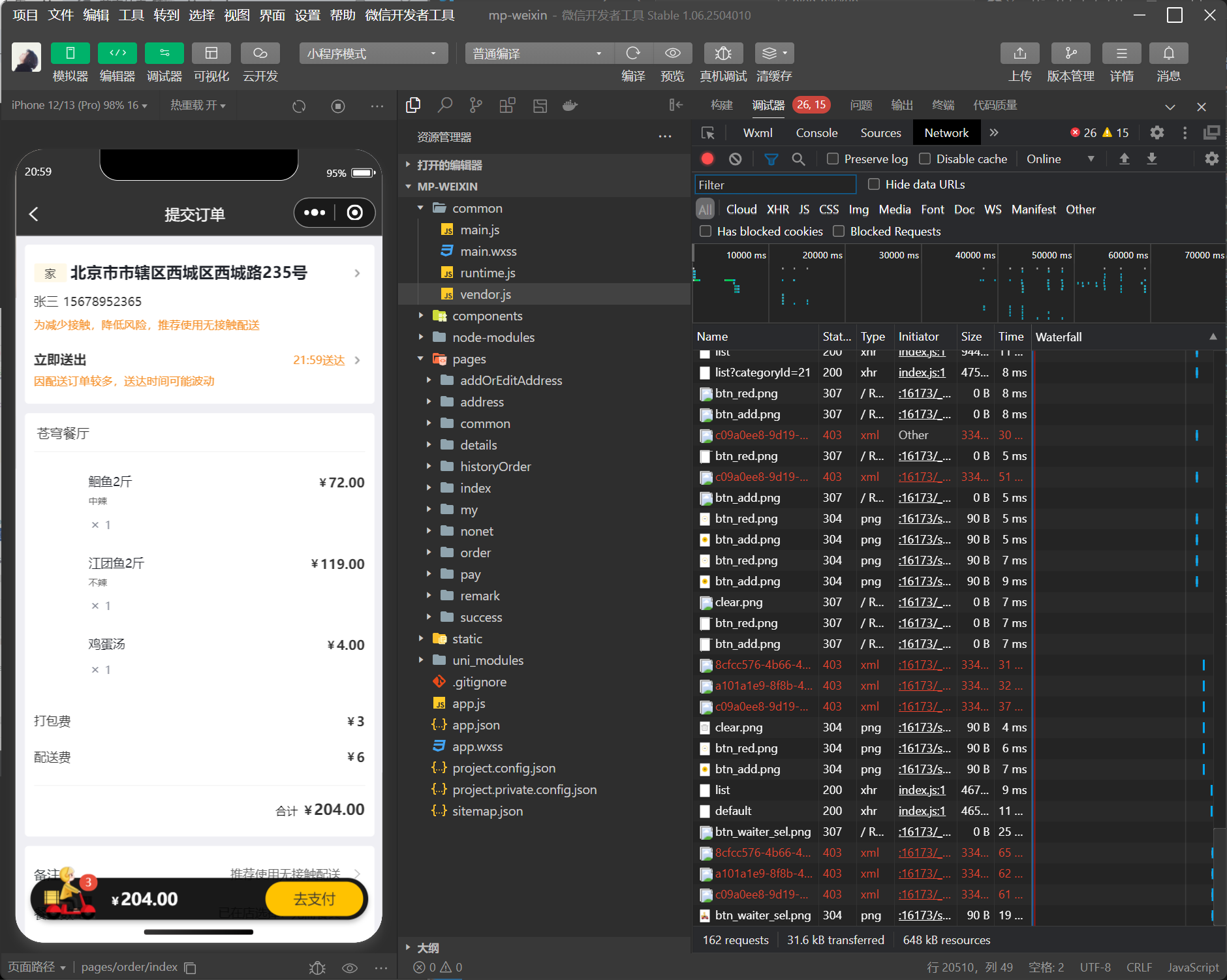

• 用户下单





三、订单支付

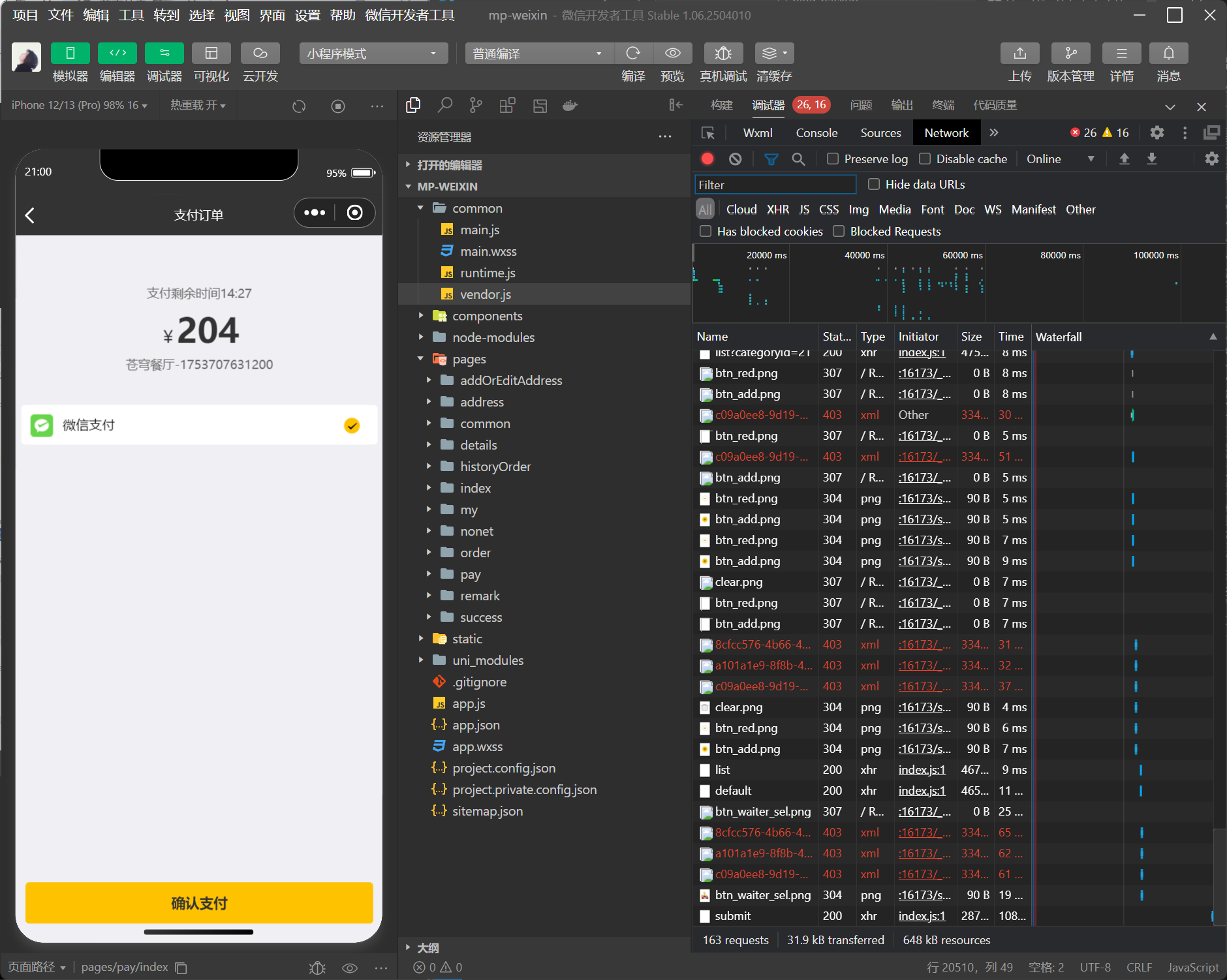

3.1 订单支付——功能开发

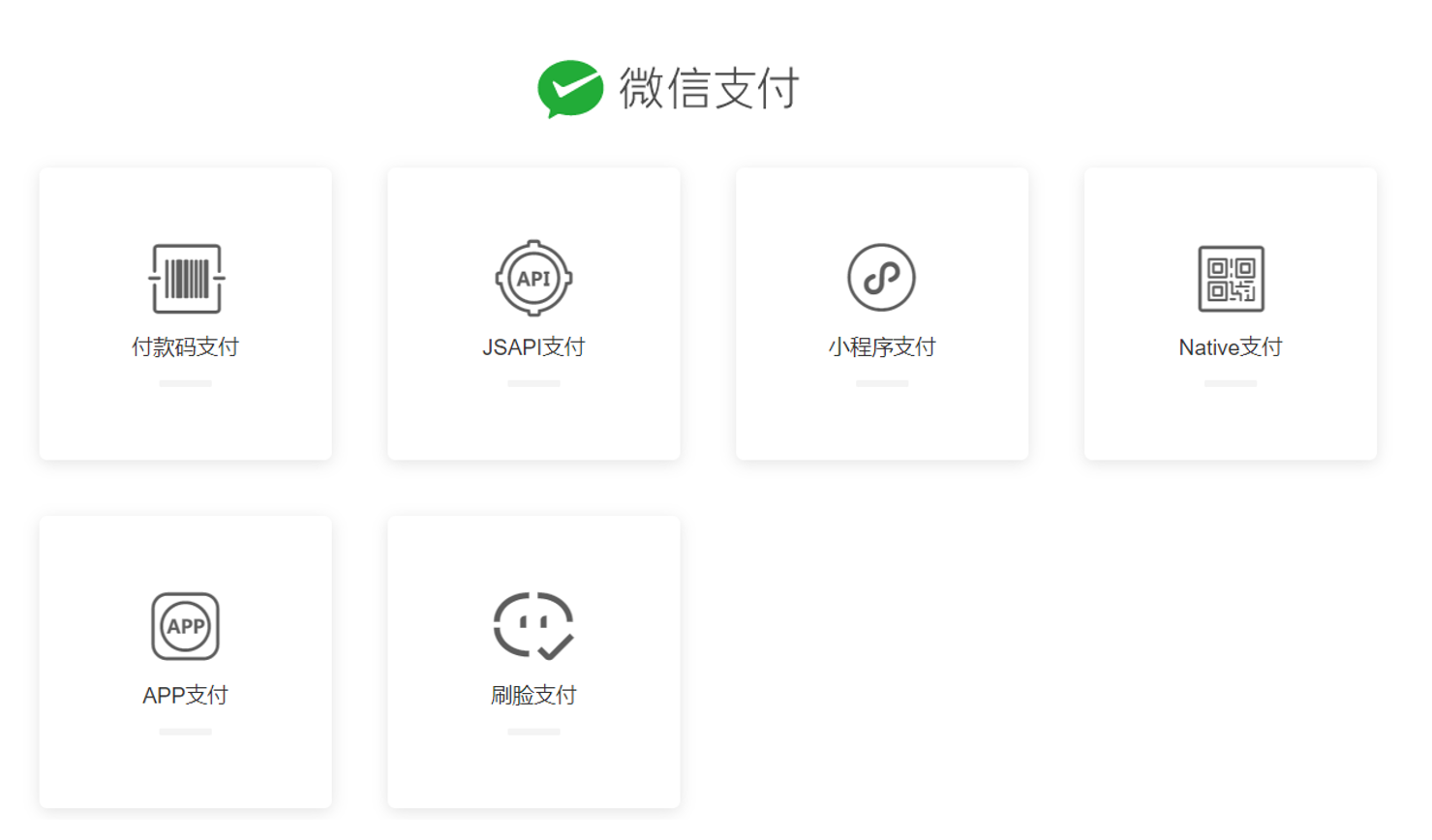

• 微信支付产品

  • 参考：https://pay.weixin.qq.com/static/product/product_index.shtml

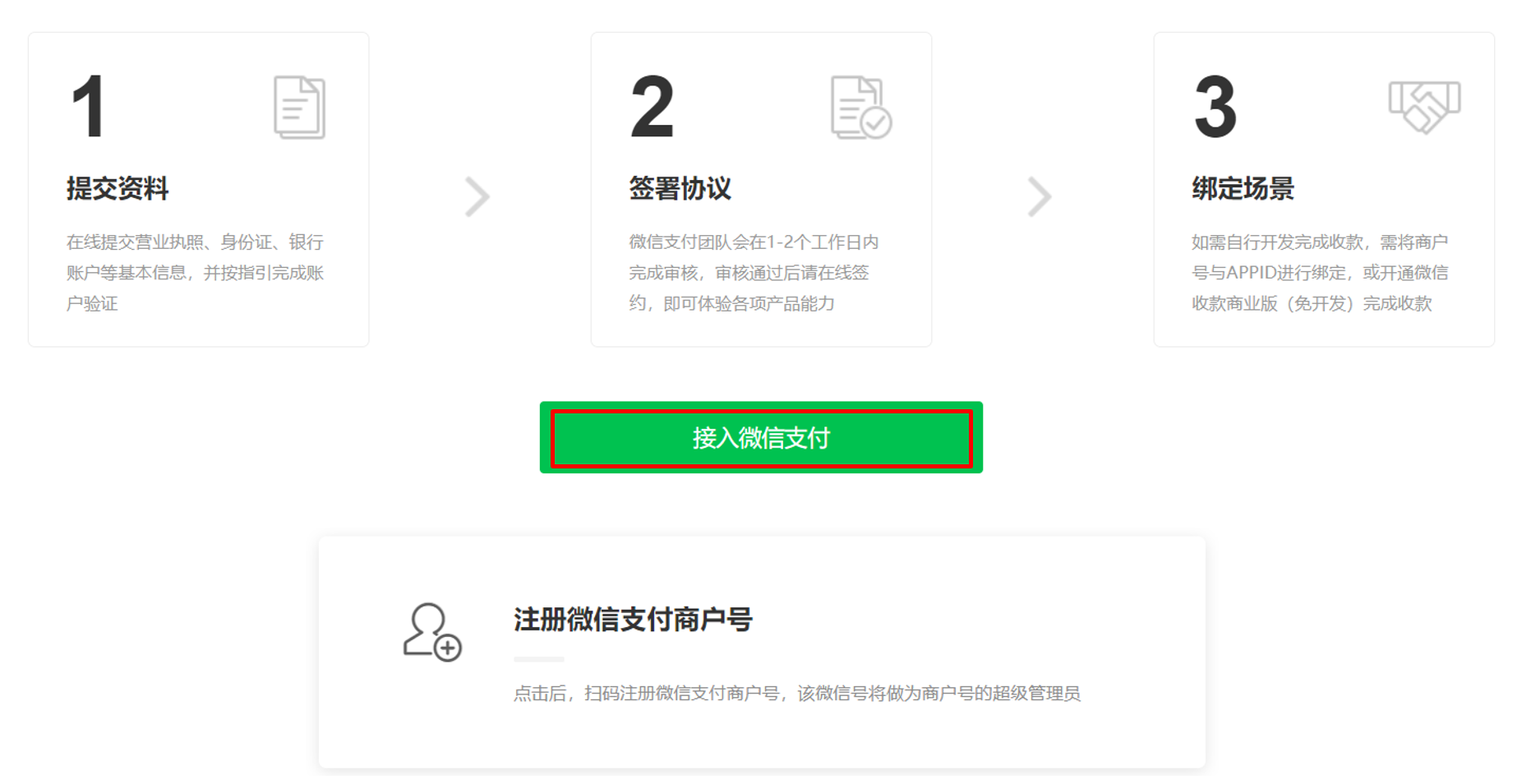

• 微信支付接入流程

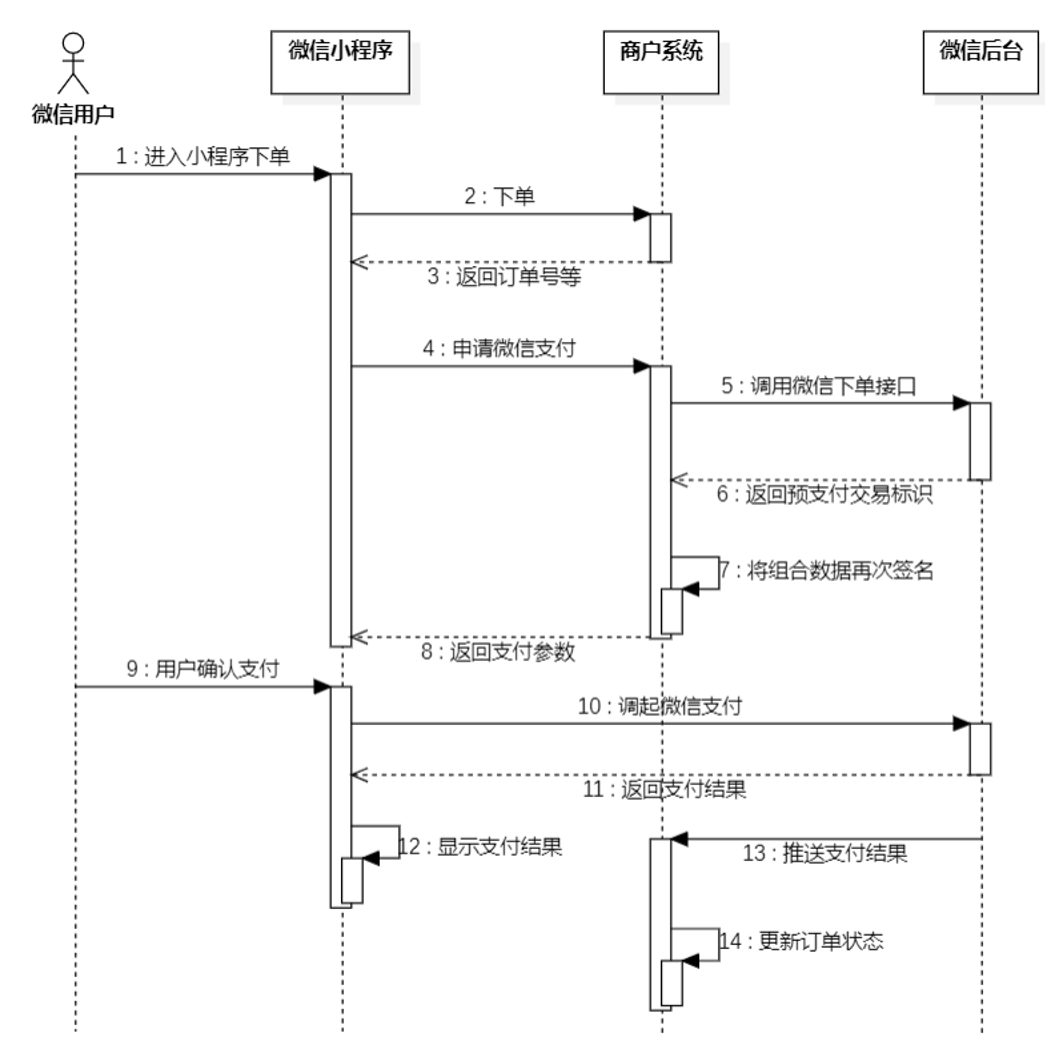

• 微信小程序支付时序图

• 接口设计

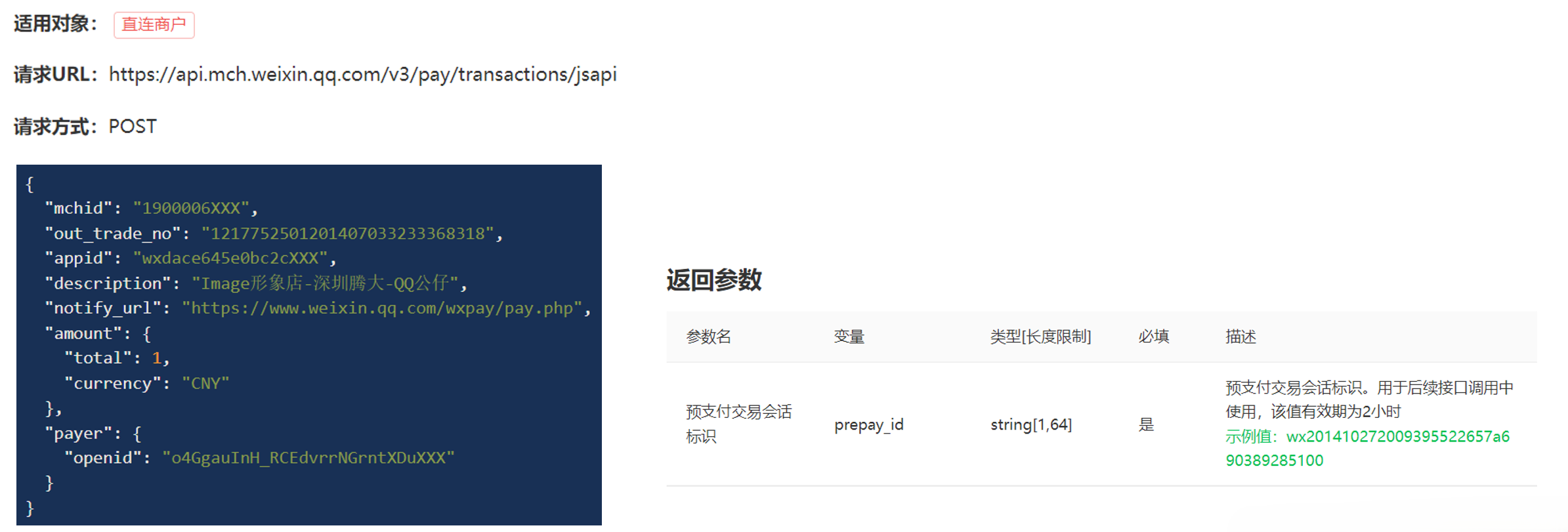

  • JSAPI下单：商户系统调用该接口在微信支付服务后台生成预支付交易单

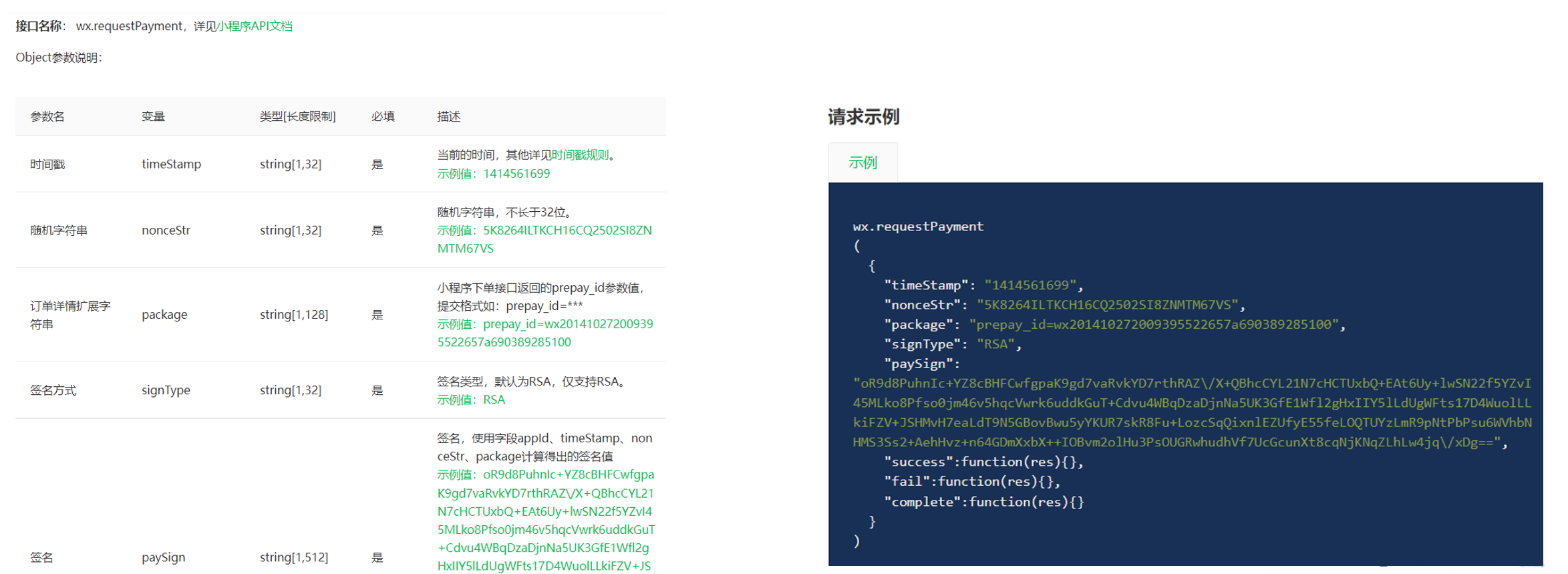

  • 微信小程序调起支付：通过JSAPI下单接口获取到发起支付的必要参数prepay_id，然后使用微信支付提供的小程序方法调起小程序支付


3.2 订单支付——准备工作

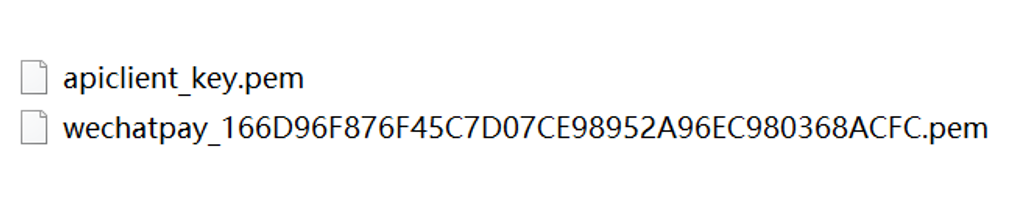

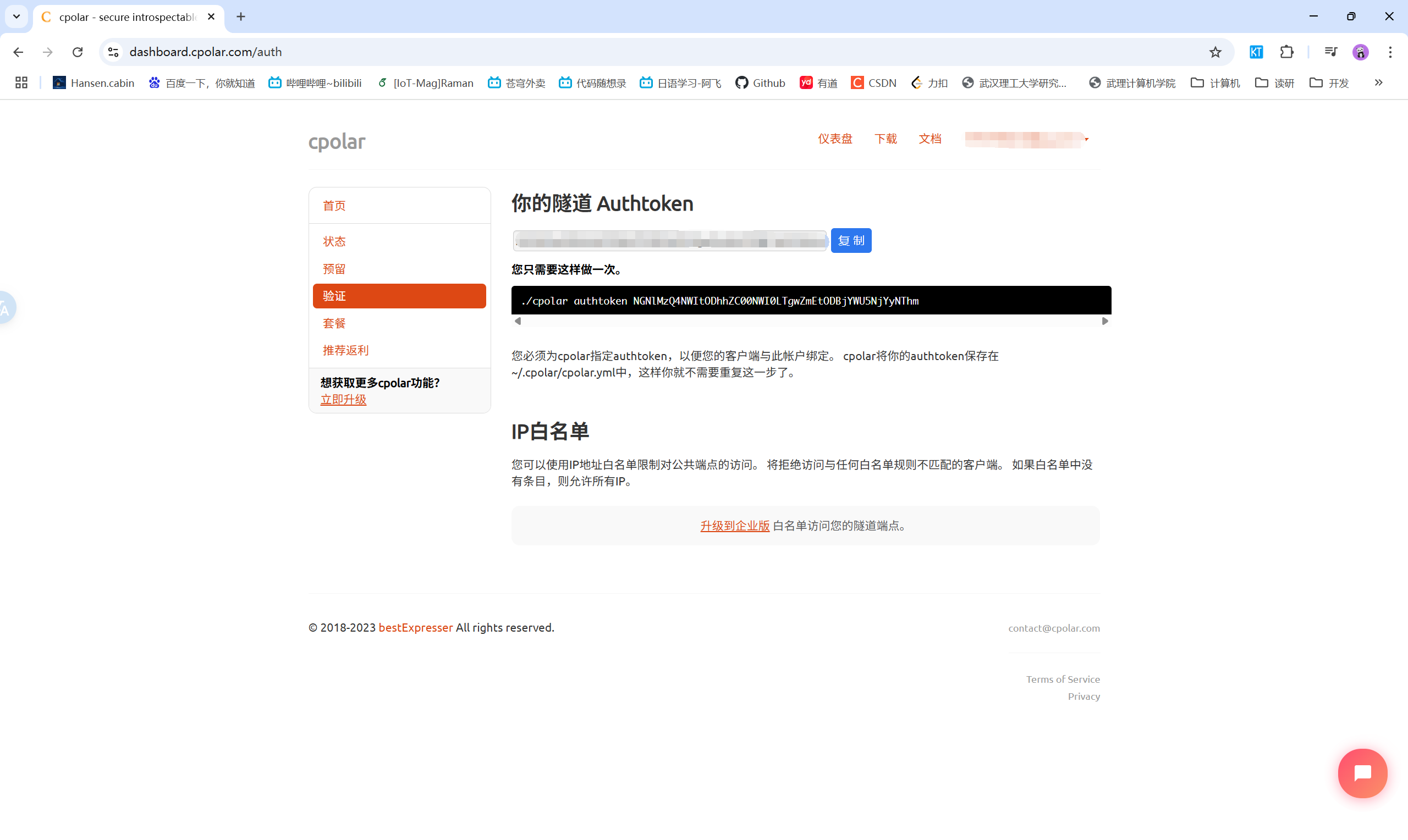

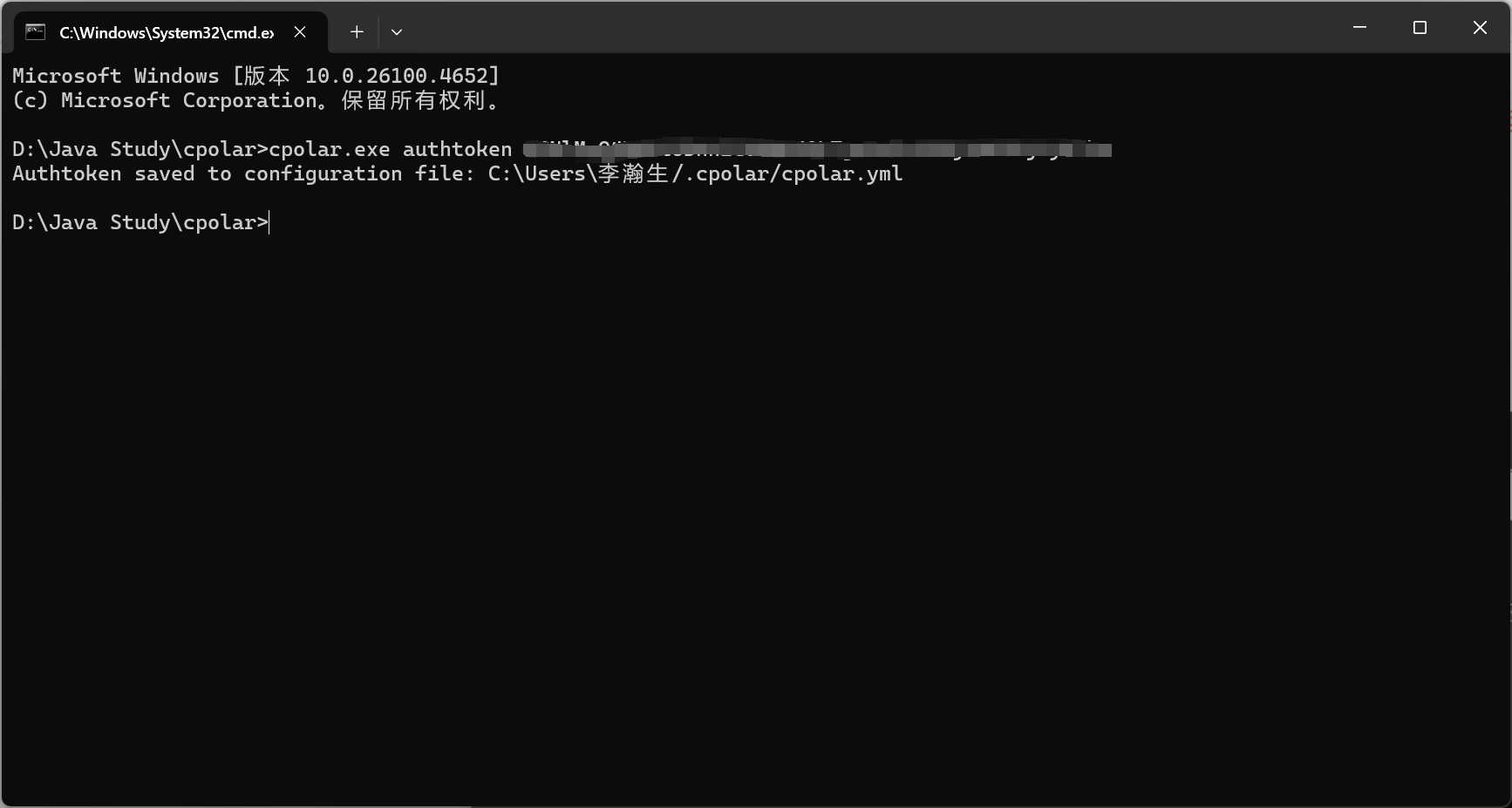

• 获取微信支付平台证书、商户私钥文件

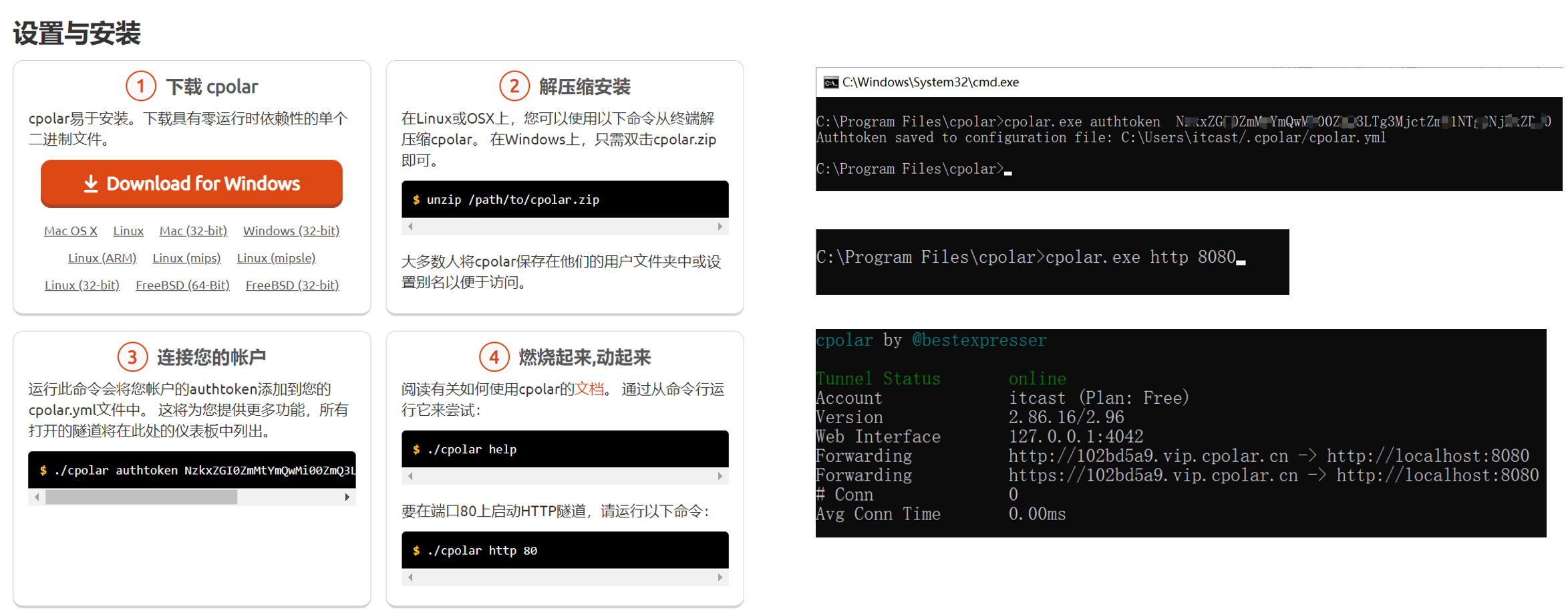

• 获取临时域名：支付成功后微信服务通过该域名回调我们的程序

  • 获取Authtoken

  • 绑定域名

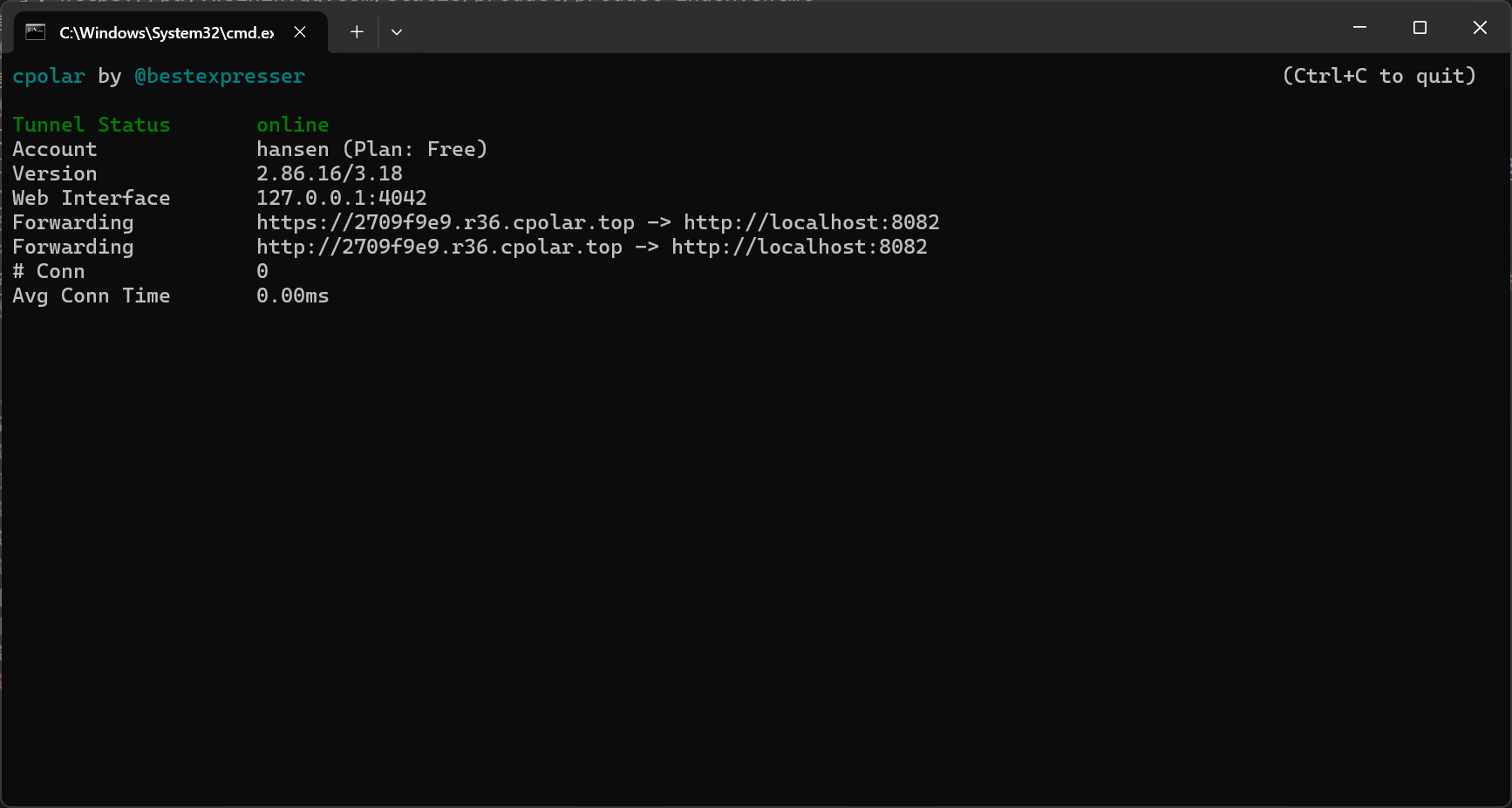

  • 获取临时域名


3.3 订单支付——代码导入

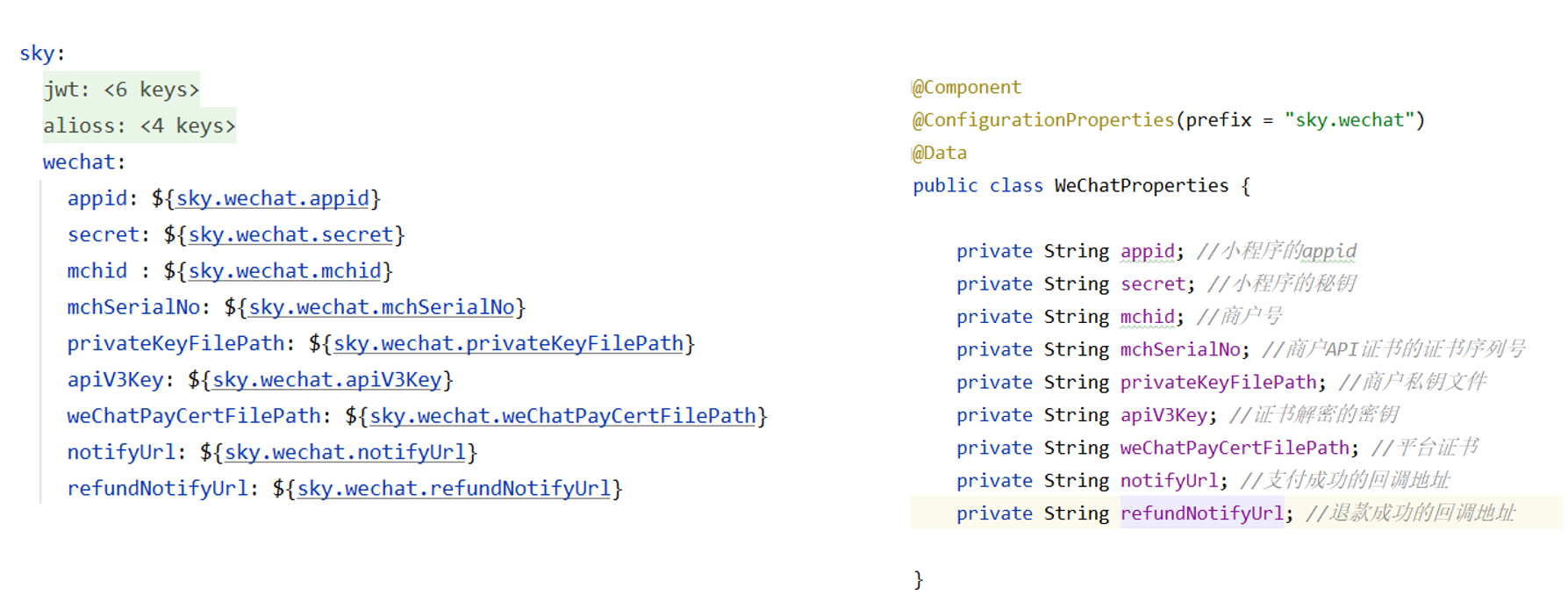

3.3.1 微信支付相关配置

3.3.2 OrderController

/**
 * 订单支付
 *
 * @param ordersPaymentDTO
 * @return
 */
@PutMapping("/payment")
@ApiOperation("订单支付")
public Result<OrderPaymentVO> payment(@RequestBody OrdersPaymentDTO ordersPaymentDTO) throws Exception {
    log.info("订单支付：{}", ordersPaymentDTO);
    OrderPaymentVO orderPaymentVO = orderService.payment(ordersPaymentDTO);
    log.info("生成预支付交易单：{}", orderPaymentVO);
    return Result.success(orderPaymentVO);
}

3.3.3 OrderService

/**
 * 订单支付
 * @param ordersPaymentDTO
 * @return
 */
OrderPaymentVO payment(OrdersPaymentDTO ordersPaymentDTO) throws Exception;

/**
 * 支付成功，修改订单状态
 * @param outTradeNo
 */
void paySuccess(String outTradeNo);

3.3.4 OrderServiceImpl

/**
 * 订单支付
 *
 * @param ordersPaymentDTO
 * @return
 */
public OrderPaymentVO payment(OrdersPaymentDTO ordersPaymentDTO) throws Exception {
    // 当前登录用户id
    Long userId = BaseContext.getCurrentId();
    User user = userMapper.getById(userId);

    //调用微信支付接口，生成预支付交易单
    JSONObject jsonObject = weChatPayUtil.pay(
            ordersPaymentDTO.getOrderNumber(), //商户订单号
            new BigDecimal(0.01), //支付金额，单位 元
            "苍穹外卖订单", //商品描述
            user.getOpenid() //微信用户的openid
    );

    if (jsonObject.getString("code") != null && jsonObject.getString("code").equals("ORDERPAID")) {
        throw new OrderBusinessException("该订单已支付");
    }

    OrderPaymentVO vo = jsonObject.toJavaObject(OrderPaymentVO.class);
    vo.setPackageStr(jsonObject.getString("package"));

    return vo;
}

/**
 * 支付成功，修改订单状态
 *
 * @param outTradeNo
 */
public void paySuccess(String outTradeNo) {

    // 根据订单号查询订单
    Orders ordersDB = orderMapper.getByNumber(outTradeNo);

    // 根据订单id更新订单的状态、支付方式、支付状态、结账时间
    Orders orders = Orders.builder()
            .id(ordersDB.getId())
            .status(Orders.TO_BE_CONFIRMED)
            .payStatus(Orders.PAID)
            .checkoutTime(LocalDateTime.now())
            .build();

    orderMapper.update(orders);
}

3.3.5 OrderMapper

/**
 * 根据订单号查询订单
 * @param orderNumber
 */
@Select("select * from orders where number = #{orderNumber}")
Orders getByNumber(String orderNumber);

/**
 * 修改订单信息
 * @param orders
 */
void update(Orders orders);

3.3.6 OrderMapper.xml

<update id="update" parameterType="com.sky.entity.Orders">
    update orders
    <set>
        <if test="cancelReason != null and cancelReason!='' ">
            cancel_reason=#{cancelReason},
        </if>
        <if test="rejectionReason != null and rejectionReason!='' ">
            rejection_reason=#{rejectionReason},
        </if>
        <if test="cancelTime != null">
            cancel_time=#{cancelTime},
        </if>
        <if test="payStatus != null">
            pay_status=#{payStatus},
        </if>
        <if test="payMethod != null">
            pay_method=#{payMethod},
        </if>
        <if test="checkoutTime != null">
            checkout_time=#{checkoutTime},
        </if>
        <if test="status != null">
            status = #{status},
        </if>
        <if test="deliveryTime != null">
            delivery_time = #{deliveryTime}
        </if>
    </set>
    where id = #{id}
</update>

3.3.7 PayNotifyController

/**
 * 支付回调相关接口
 */
@RestController
@RequestMapping("/notify")
@Slf4j
public class PayNotifyController {
    @Autowired
    private OrderService orderService;
    @Autowired
    private WeChatProperties weChatProperties;

    /**
     * 支付成功回调
     *
     * @param request
     */
    @RequestMapping("/paySuccess")
    public void paySuccessNotify(HttpServletRequest request, HttpServletResponse response) throws Exception {
        //读取数据
        String body = readData(request);
        log.info("支付成功回调：{}", body);

        //数据解密
        String plainText = decryptData(body);
        log.info("解密后的文本：{}", plainText);

        JSONObject jsonObject = JSON.parseObject(plainText);
        String outTradeNo = jsonObject.getString("out_trade_no");//商户平台订单号
        String transactionId = jsonObject.getString("transaction_id");//微信支付交易号

        log.info("商户平台订单号：{}", outTradeNo);
        log.info("微信支付交易号：{}", transactionId);

        //业务处理，修改订单状态、来单提醒
        orderService.paySuccess(outTradeNo);

        //给微信响应
        responseToWeixin(response);
    }

    /**
     * 读取数据
     *
     * @param request
     * @return
     * @throws Exception
     */
    private String readData(HttpServletRequest request) throws Exception {
        BufferedReader reader = request.getReader();
        StringBuilder result = new StringBuilder();
        String line = null;
        while ((line = reader.readLine()) != null) {
            if (result.length() > 0) {
                result.append("\n");
            }
            result.append(line);
        }
        return result.toString();
    }

    /**
     * 数据解密
     *
     * @param body
     * @return
     * @throws Exception
     */
    private String decryptData(String body) throws Exception {
        JSONObject resultObject = JSON.parseObject(body);
        JSONObject resource = resultObject.getJSONObject("resource");
        String ciphertext = resource.getString("ciphertext");
        String nonce = resource.getString("nonce");
        String associatedData = resource.getString("associated_data");

        AesUtil aesUtil = new AesUtil(weChatProperties.getApiV3Key().getBytes(StandardCharsets.UTF_8));
        //密文解密
        String plainText = aesUtil.decryptToString(associatedData.getBytes(StandardCharsets.UTF_8),
                nonce.getBytes(StandardCharsets.UTF_8),
                ciphertext);

        return plainText;
    }

    /**
     * 给微信响应
     * @param response
     */
    private void responseToWeixin(HttpServletResponse response) throws Exception{
        response.setStatus(200);
        HashMap<Object, Object> map = new HashMap<>();
        map.put("code", "SUCCESS");
        map.put("message", "SUCCESS");
        response.setHeader("Content-type", ContentType.APPLICATION_JSON.toString());
        response.getOutputStream().write(JSONUtils.toJSONString(map).getBytes(StandardCharsets.UTF_8));
        response.flushBuffer();
    }
}

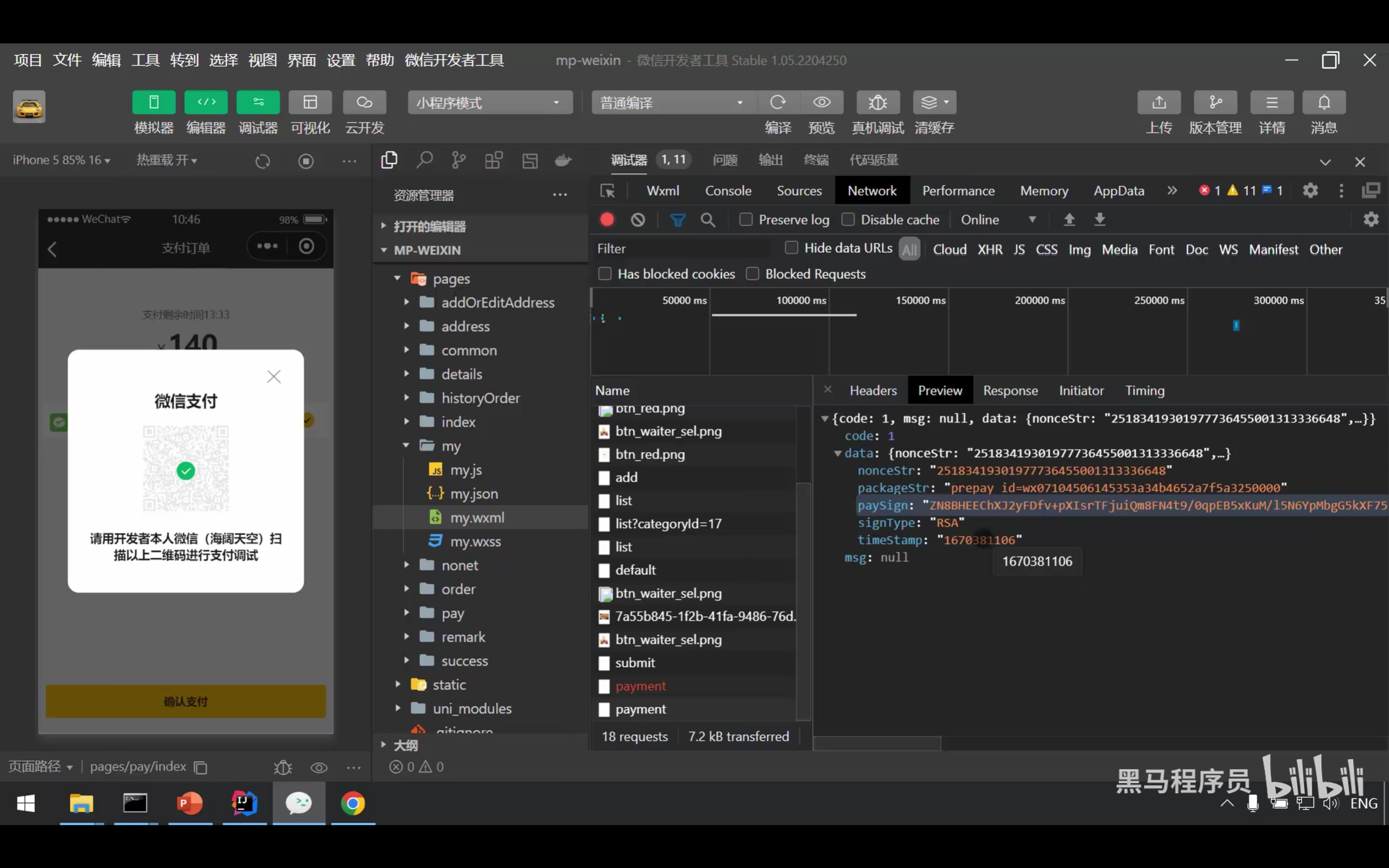

3.4 订单支付——功能测试

• 订单支付


四、跳过微信支付

4.1 参考链接

• 参考帖子：苍穹外卖跳过微信支付

4.2 实现方法

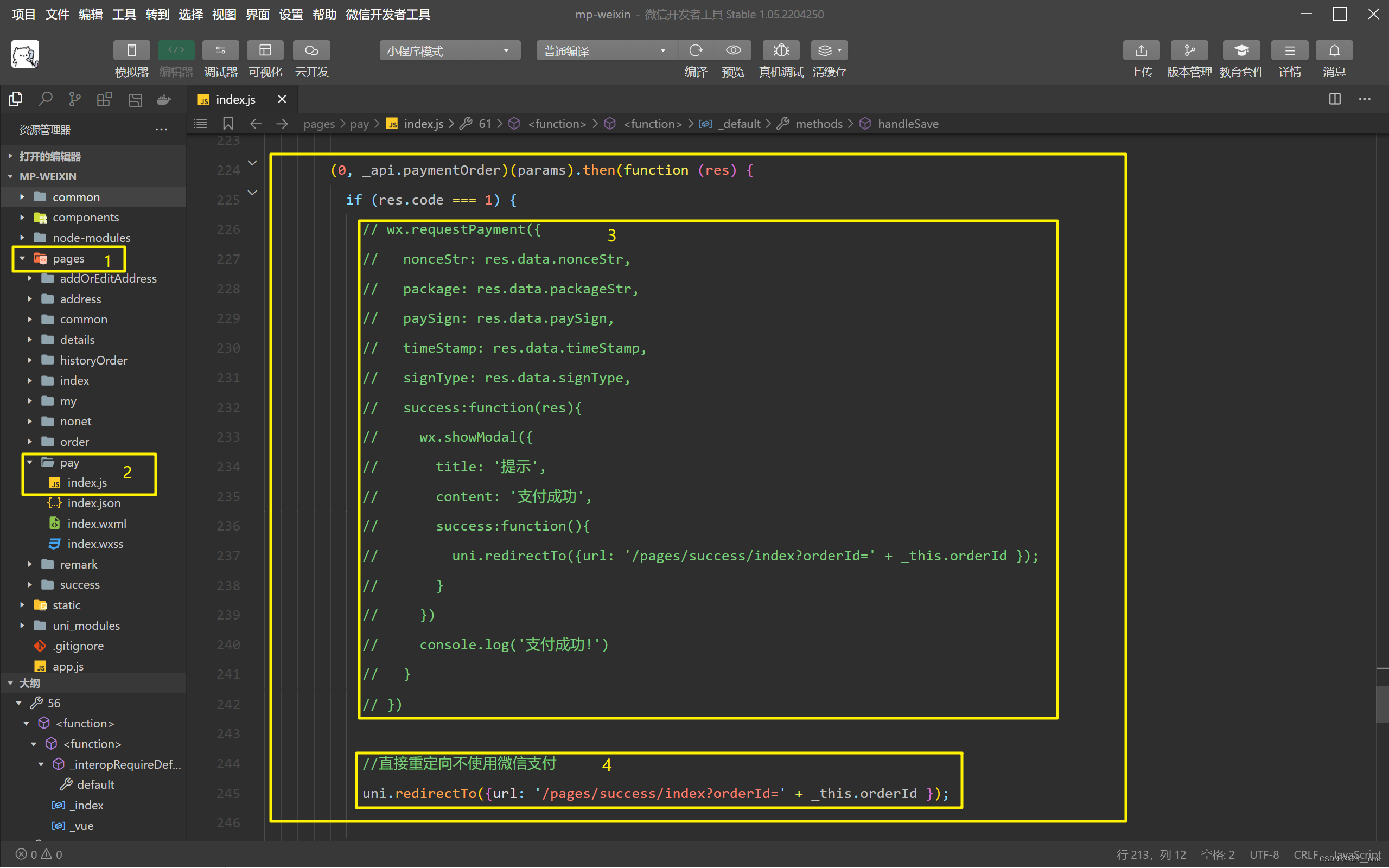

第一步：打开小程序端按照图片中的标注修改注释代码

第二步：修改idea中OrderServiceImpl中的订单支付payment的业务代码

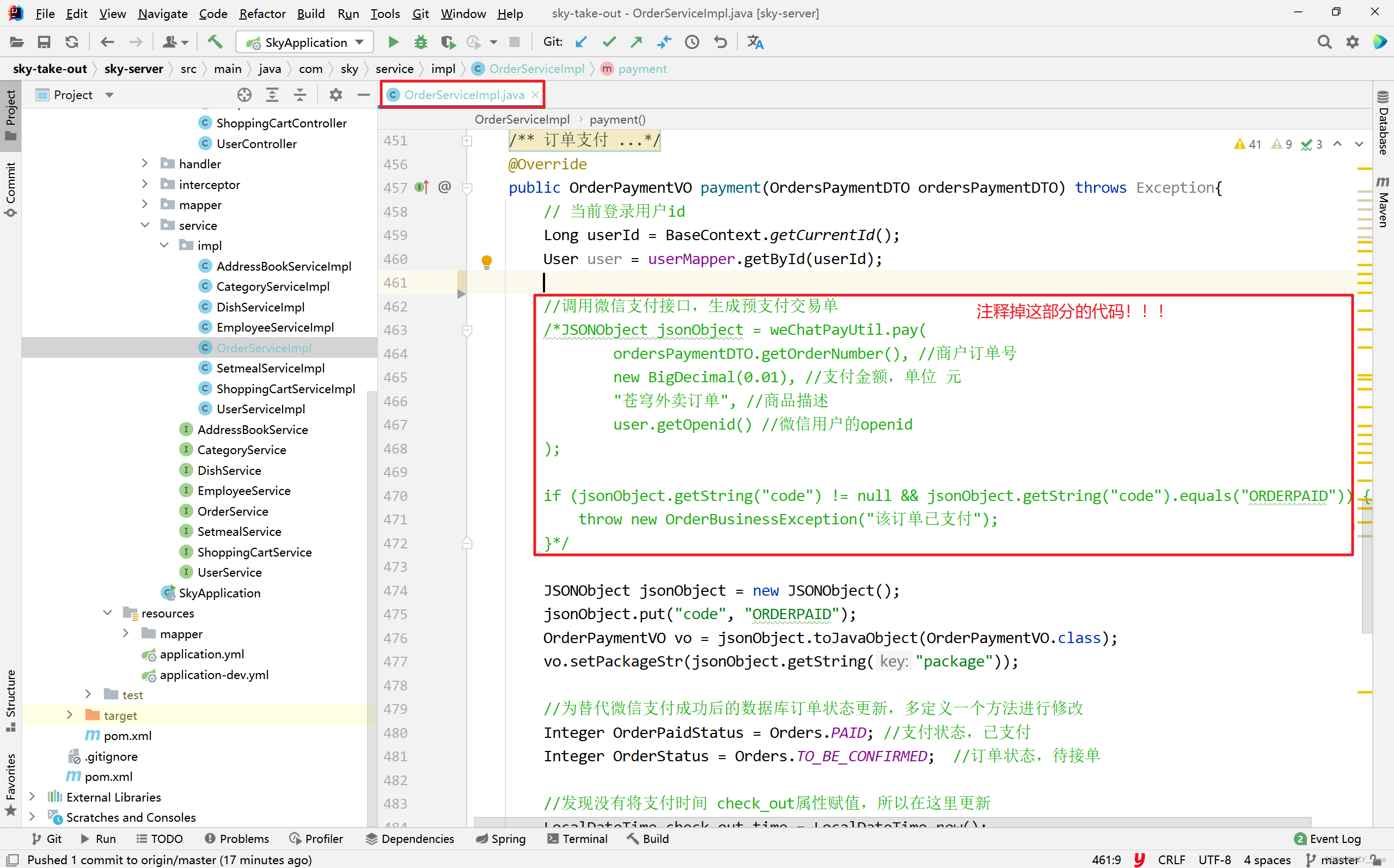

• 将如下部分注释

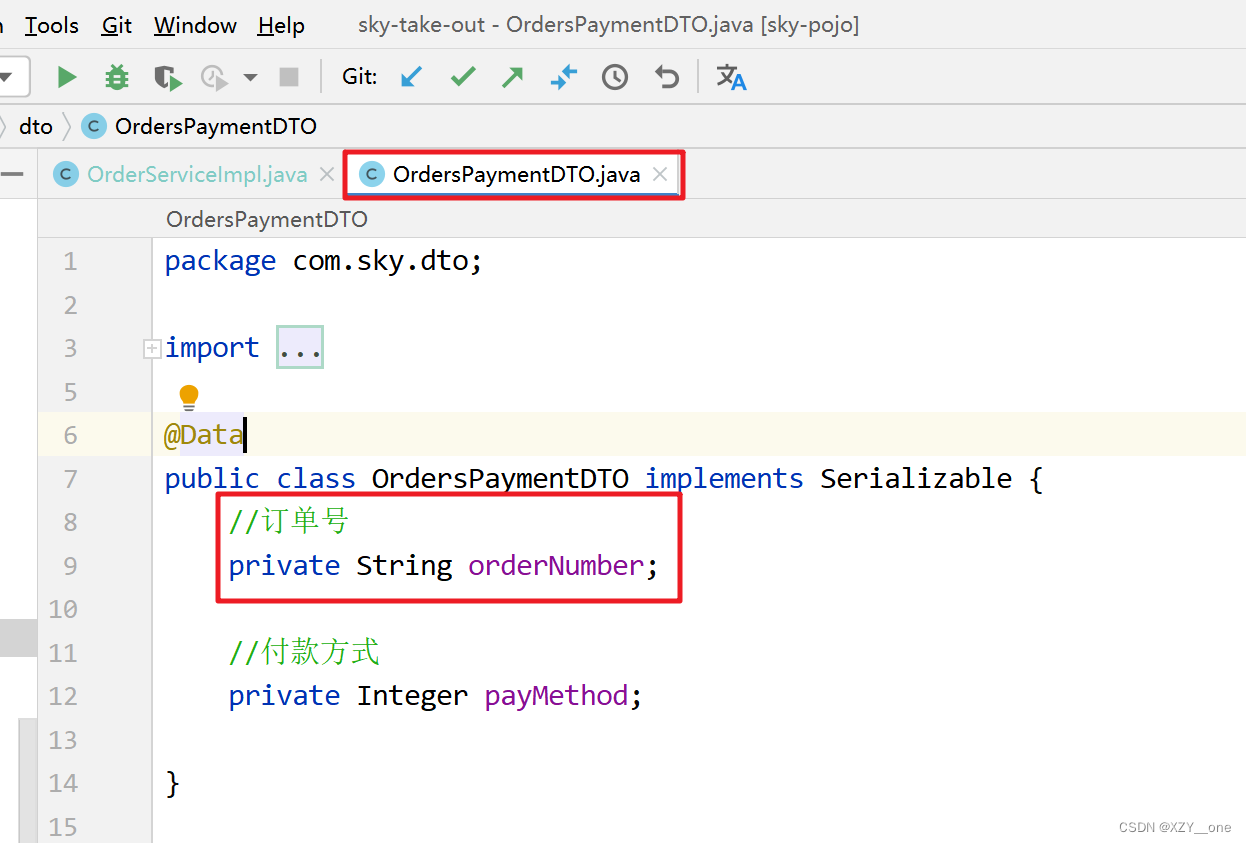

• 注意这个payment方法的参数OrdersPaymentDTO中有订单号orderNumber，这个非常重要

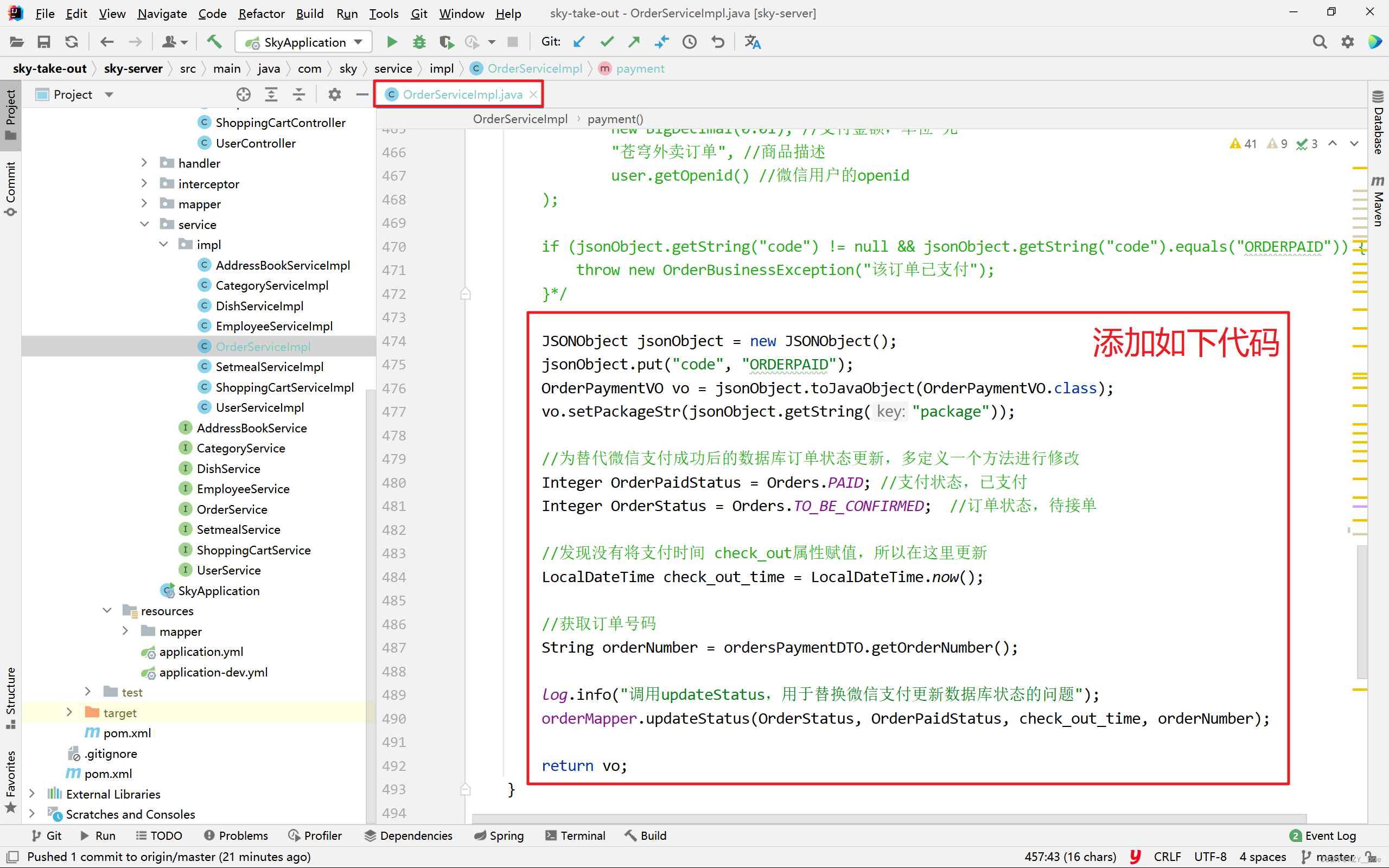

• 添加如下代码

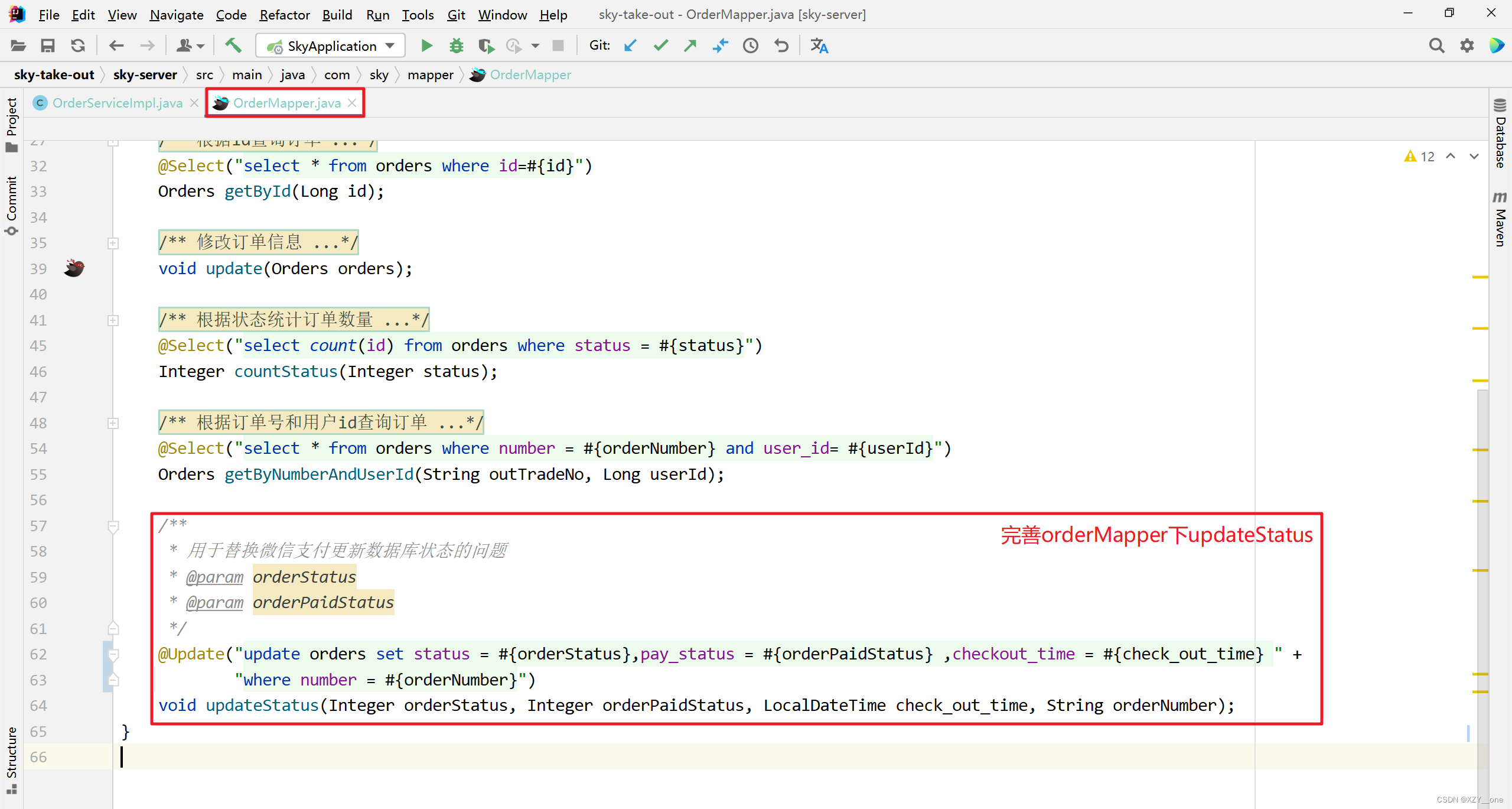

• 完善这个orderMapper下这个updateStatus方法：

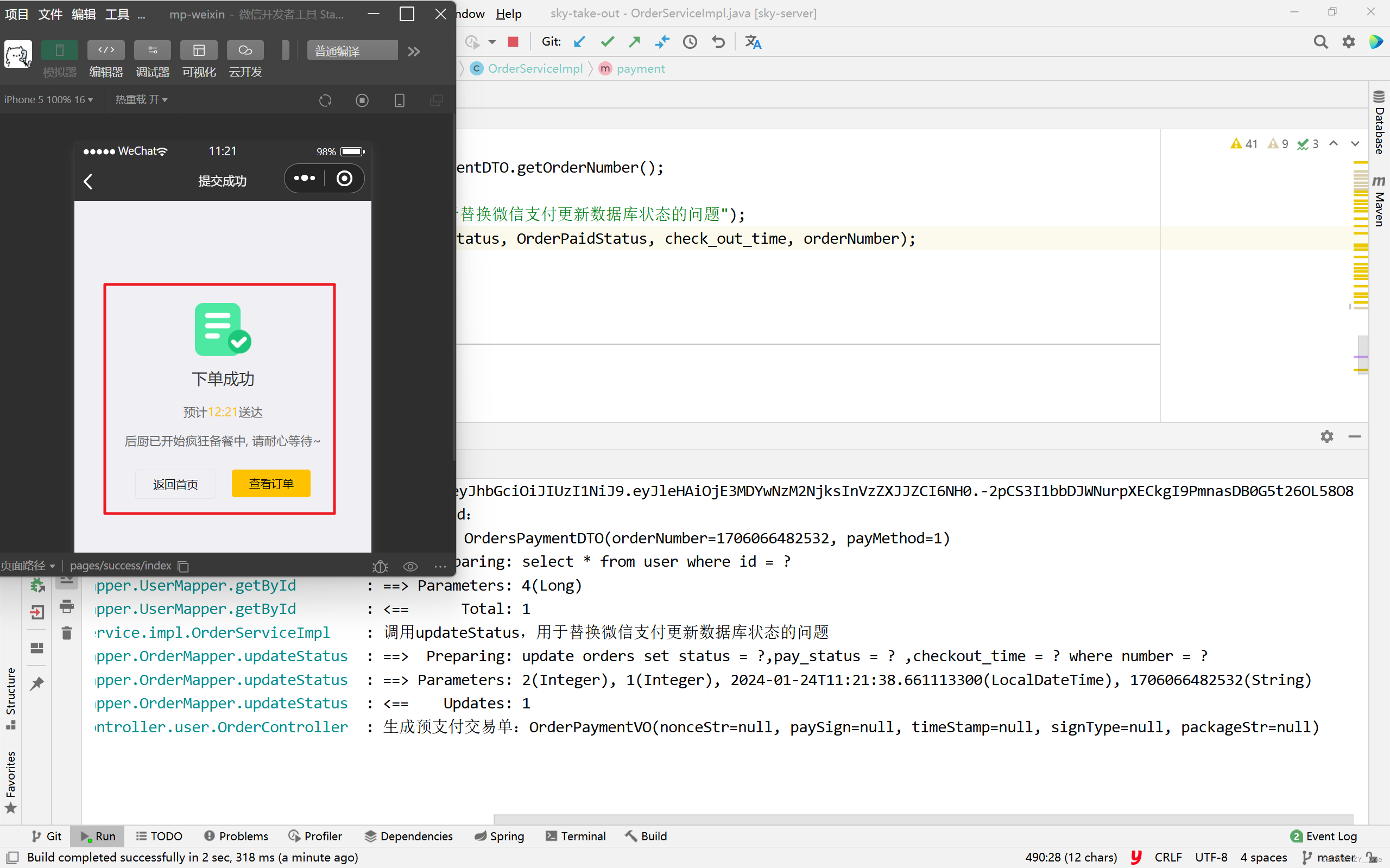

• 测试


4.3 源码

4.3.1 OrderServiceImpl

/**
     * 订单支付
     * @param ordersPaymentDTO
     * @return
     */
    @Override
    public OrderPaymentVO payment(OrdersPaymentDTO ordersPaymentDTO) throws Exception{
        // 当前登录用户id
        Long userId = BaseContext.getCurrentId();
        User user = userMapper.getById(userId);

        //调用微信支付接口，生成预支付交易单
        /*JSONObject jsonObject = weChatPayUtil.pay(
                ordersPaymentDTO.getOrderNumber(), //商户订单号
                new BigDecimal(0.01), //支付金额，单位 元
                "苍穹外卖订单", //商品描述
                user.getOpenid() //微信用户的openid
        );

        if (jsonObject.getString("code") != null && jsonObject.getString("code").equals("ORDERPAID")) {
            throw new OrderBusinessException("该订单已支付");
        }*/

        JSONObject jsonObject = new JSONObject();
        jsonObject.put("code", "ORDERPAID");
        OrderPaymentVO vo = jsonObject.toJavaObject(OrderPaymentVO.class);
        vo.setPackageStr(jsonObject.getString("package"));

        //为替代微信支付成功后的数据库订单状态更新，多定义一个方法进行修改
        Integer OrderPaidStatus = Orders.PAID; //支付状态，已支付
        Integer OrderStatus = Orders.TO_BE_CONFIRMED;  //订单状态，待接单

        //发现没有将支付时间 check_out属性赋值，所以在这里更新
        LocalDateTime check_out_time = LocalDateTime.now();

        //获取订单号码
        String orderNumber = ordersPaymentDTO.getOrderNumber();

        log.info("调用updateStatus，用于替换微信支付更新数据库状态的问题");
        orderMapper.updateStatus(OrderStatus, OrderPaidStatus, check_out_time, orderNumber);

        return vo;
    }

4.3.2 OrderMapper

/**
   * 用于替换微信支付更新数据库状态的问题
   * @param orderStatus
   * @param orderPaidStatus
   */
  @Update("update orders set status = #{orderStatus},pay_status = #{orderPaidStatus} ,checkout_time = #{check_out_time} " +
          "where number = #{orderNumber}")
  void updateStatus(Integer orderStatus, Integer orderPaidStatus, LocalDateTime check_out_time, String orderNumber);
